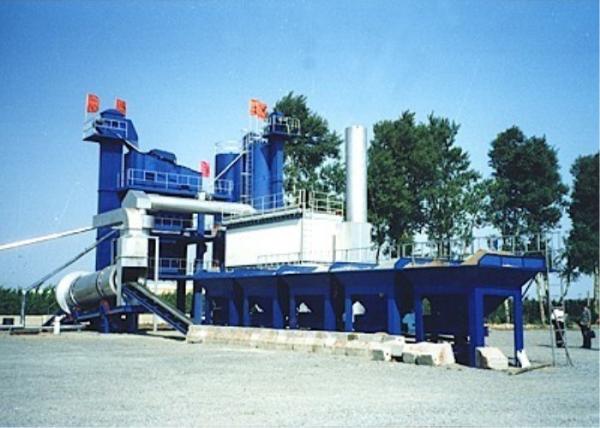

255 KW Full Automatic asphalt mixer plant With 3000kgs Mixer Capacity

80~90 tons / Hour Capacity Mobile Asphalt Batching Plant GLB-1000 With 1000kgs Mixer Capacity

80~90 TPH Stationary Asphalt Batching Plant GLB-1000 With 30 m3 Hot Agg Bin Burner

• Model and technical data:

Plant type: GLB-1000

• Capacity:80~90t/h
• Fuel consumption: 6.5kg / metric tonne (product)
• Weigh accuracy: 0.3% for asphalt, 0.5% for filler, 0.5% for aggregates
• Emission≤20mg/Nm³(Using the Bag filter)
• Total power: 255KW
• Structure: modular
• Ambient temperature: 5ºC~+50ºC
• Standard: GB/T17808-199

• Scope and quotation:
  • Cold Feed

• Cold bin

Capacity: 8m³/each

Quantity: 4 sets

Width of each bin: 3,500mm

Height of each bin: 2,850mm

• Belt feeder

Capacity: 50t/h each

Quantity: 4 sets

Variable-speed geared motor

• Horizontal collecting belt

• Dryer and burner(Tietuo Brand)

Dimension: φ1,750mm(D)×7,000mm(L)

Driven by friction-driven variable speed motor: 4x7.5kW

Optimized flight structure with replacement design.

Rock wool isolated, stainless steel covered.

Temperature sensor with thermocouple, wear proof

Burner: Low-pressure,Bubble automization,

light/heavy oil, 800 kg/h.

Air compressor:2m³/min, 0.6 m³ air tank

• Hot Bucket elevator

Capacity: 100 t/h

Motor: 18.5 kW

Bucket chain elevator

• Vibrating screen and Hot hopper

Linear vibration, 4 kinds of aggregates, 4 deck

Imported motor, electro-vibrator,

Motor: 3.2kW×2

Sealed, dust proof., negative-pressure

Spec of screen mesh: 4×4, 10×10, 18×18,25×25

We can also supply special mesh size according to customer demands.

5. Hot hopper:

4 aggregate hoppers and 1 waste bin and 1 recovery filler temporary bin

Effective capacity of aggregate bin is 10 m³

Level indicator (Upper) and for overflow bin

Thermostat in sand hopper

Sampling door

Negative pressured structure (dust proof) and connections

6. Weighing system and Mixer

Aggregate Weighing:

3 Toledo load cells, adjustable double door

Filler Weighing:

3 Toledo load cells, butterfly valve.

Bitumen weighing:

3 Toledo load cells

Direct input from load cell to PLC, high accuracy

7. Mixer:

Type: Twin-shaft type, central lubricating device.

Motor: 18.5kW×2

Capacity: 80t / h, 1000kg/batch

Mixing period: 45 seconds.

Life for paddle and liner: 100,000 batches

Specifications:

Since 1990, Wuhan Visbull Machiney Co., Ltd. has exported engineering machinery, Construction machinery and agricultural machinery machinery to international markets. Satisfying customers' stated and implied needs has always been the focus of business policy of Visbull. As a futher step to satisfy customers and to give them confidence in our quality and production capabilities, Visbull has adopted ISO 9001:2000, the international quality management system. And some of our products have also passed CE and EPA certification.

With a rich inventory of numerous products and vast sourcing capabilities (more than 60 famous manufactures) cater to the requirements of its customers. Except abundant of products, we also set up factory for studying and producing relative machinery products.

From base to top, Visbull holds a unique position in the global market of machinery products which is combination of production and trade. With more than 20 years experience in the export of machinery products, Visbull has gained reputation and confidence as a reliable Chinaese Supplier. By Virtue of committed management and dedicated emplyees, Visbull has gained recognition from the government of China as excellent exporter.
