    ZF Transmission Road Construction Compact Motor Grader Rental With 15000kg Operating Weight

    Ask Lasest Price
    Brand Name : XCMG
    Model Number : GR165
    Certification : CE,ISO,SGS
    Price : negotiation
    Payment Terms : L/C at sight, T/T or western Union
    Supply Ability : 1500 units per month
    Delivery Time : 10 working days after received L/C or your deposit
    • Product Details
    • Company Profile

    ZF Transmission Road Construction Compact Motor Grader Rental With 15000kg Operating Weight

    ZF Transmission Road Construction Compact Motor Grader Rental With 15000kg Operating Weight


    Road Construction Machinery GR165 165HP Small Motor Grader With 7.3M Min Turning Radius


    Description:

    GR series of motor grader are mainly used in the operation of road surface leveling,

    ditch digging, slope leveling, bulldozing, scarification and snow removing on the

    road, airport and farmland. The motor grader is the necessary construction

    machinery for defense construction, mine construction, urban and rural road

    construction and irrigation works and farmland improvement.


    Features

    • Brake System:The travelling brake system adopts the hydraulic components of Rexroth (Germany).
    • Steering system: Adopting sensor with load.
    • Chassis:Being of welded structure, just like a box, so it is strong enough to ensure no deformation.
    • Cabin:with wide-field vision, low noise, ultraviolet-protection glass, and with Curtis (of USA) or VDO (of Germany) instrument panel, height-adjustable seat, radio, ashtray, cup-seat etc.
    • Slewing Mechanism: Be fitted with hard material lining, which ensures easy and flexible move of the blade, and high-accuracy flatness and low-cost maintenance as well.
    • Operation System: Forward/backward adjustable opertion Panel, with HUSCO multi-way valve, electrically- controlled ZF gearbox, so it is quite easy to make any operation.

    Optional Equipment:


    Automatic leveling unit

    Front blade

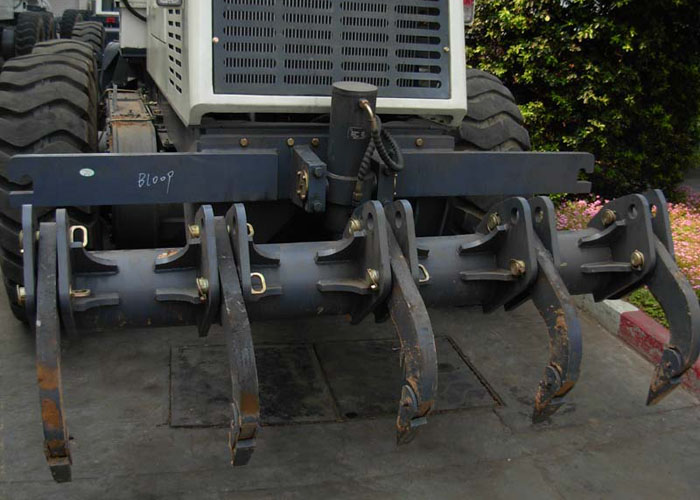

    Rear rippe


    ZF Transmission Road Construction Compact Motor Grader 165HP With 15000kg Operating Weight


    ZF Transmission Road Construction Machinery 165HP Motor Grader With Front Blade And Rear Ripper

    Specifications:

    Basic specification

    Engine model

    SC8D170G2B1

    Rated power/speed

    125kW/2300rpm

    Dimension(LxWxH)

    8900×2625×3470mm

    Operating weight(Standard)

    15000kg

    Performance specification

    Travelling speed ,forward

    5,8,11,19,23,38 km/h

    Travelling speed ,reverse

    5,11,23 km/h

    Tractive force(f=0.75)

    77KN

    Max. gradeability

    20%

    Tire inflation pressure

    260 kPa

    Working hydraulic pressure

    16 MPa

    Transmission pressure

    1.3~1.8MPa

    Operating specification

    Max. steering angle of front wheels

    ±50°

    Max. lean angle of front wheels

    ±17°

    Max. oscillation angle of front axle

    ±15°

    Max. oscillation angle of balance box

    15

    Frame articulation angle

    ±27°

    Min. turning radius using articulation

    7.3m

    Biade

    Maximum lift above ground

    450mm

    Maximum depth of cutting

    500mm

    Maximum blade position angle

    90°

    Blade cutting angle

    28°—70°

    Circle reversing rotation

    360°

    Moldboard width X height

    3965×610mm
