Ground Leveling Earthmoving Motor Grader Machine GR100 With 350KPa Tire Inflation Pressure

XCMG Road Construction Machinery 100HP 7Tons Mini Small Motor Grader GR100 With 350KPa Tire Inflation Pressure

The XCMG GR Series Motor Graders are mainly used in ground leveling ,canalling , slope scraping ,earthmoving ,scarification or snow removal work on road, airfield ,farmland ,and so on .They are necessary construction machines for national defense engineering ,mine construction, town and country roads building ,and farmland improvement.

Specifications:

GR100 Motor Grader
Basic specification

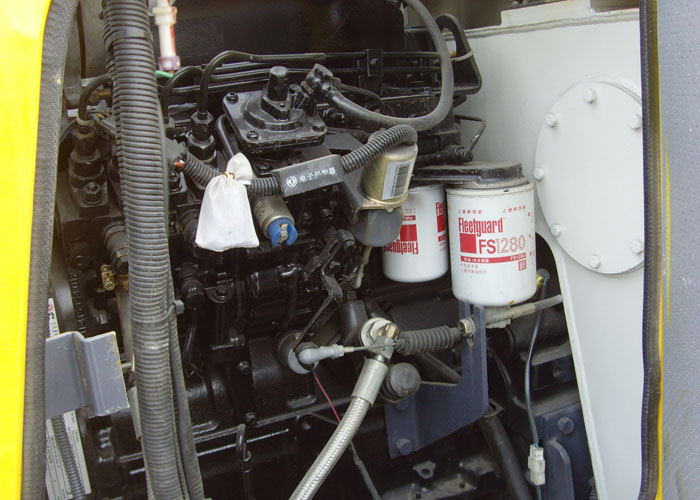

Engine model	4BT3.9
Rated power/speed	75/2400kw/rpm
Dimension(LxWxH)	6880×2375×3150mm (can load into one 40HQ)
Operating weight(Standard)	7000kg
Performance specification
Travelling speed ,forward	5,8,11,17,24,38km/h
Travelling speed ,reverse	5,11,24km/h
Tractive force(f=0.75)	41.6KN
Max. gradeability	30%
Tire inflation pressure	350 MPa
Working hydraulic pressure	16 MPa
Transmission pressure	1.3～1.8MPa
Operating specification
Max. steering angle of front wheels	±49°
Max. lean angle of front wheels	±17°
Max. oscillation angle of front axle	±15°
Max. oscillation angle of balance box
Frame articulation angle	±27°
Min. turning radius using articulation	5.9m
Blade
Maximum lift above ground	300mm
Maximum depth of cutting	350mm
Maximum blade position angle	45°
Blade cutting angle	28°—70°
Circle reversing rotation	120°
Moldboard width X height	3048×450mm

Performance and characteristic:

New appearance design

The articulation frame is adopted and matched with the steering of the front wheel, with small turning radius, maneuvering and flexible.

The electro-hydraulic controls the power shift gearbox, with 4ahead gears and 2 back gears.

The international matching hydraulic parts are adopted, with reliable operation.

The motions of the blade are fully hydraulically controlled.

The rear axle is the three-section driving axle which is provided with the NO-SPIN self-locking differential mechanism.

The manipulation table and seats are adjustable. The arrangement of the manipulation handle and instruments are reasonable, with convenient application, and the comfort of driving is improved.

The cab is grand and nice, with wide eyeshot and good sealing.

The front bulldozing plate, rear scarification device, front scarification harrow and automatic leveling device can be added.
