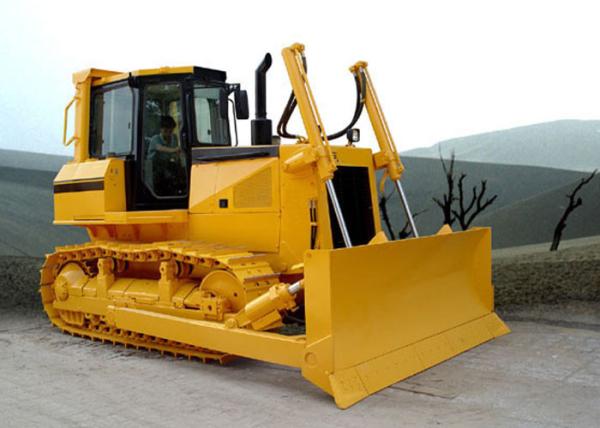

| Main specifications (Standard type: straight dozer) | |
| Overall dimensions (L × W × H) : | 5236 × 3297 × 3160 mm |
| Operation weight: | 17.8 t |
| Flywheel power: | 121 kW |
| Max. drawbar pull: | 139.6 kN (The efficient force depends on weight and ground surface
adherence) |
| Ground pressure (at operating weight): | 69.2 KPa |
| Min. ground radium: | 4.0 m |
| Min. ground clearance: | 352.5 mm |
| Grade ability: | Straight 30° Side 25 ° |
| Diesel engine | |
| Manufactured factory: | Weichai DIESEL ENGINE CO., LTD |
| Model: | WD10G178E15 |
| Type: | water-cooled, single-row, vertical, 4-stroke-cycle, turbo-charged |
| Number of cylinders-bore×stroke: | 6-120.7 × 152.4mm |
| Total piston displacement: | 10.5 L |
| Rated RPM: | 1850 r/min |
| Rated power: | 121 kW |
| Oil consumption (at rated power output) | |
| Fuel consumption: | ≤ 244 g /kW·h |
| Lube oil consumption: | ≤ 0.6 g /kW·h |
| Max. torque ( ≤ 1400r/min): | ≥ 790 N · m |
| Cooling method: | closed circulation water cooling |
| Starting method: | by electric at 24V |
| Torque converter and transmission | Single-stage, three unites structure torque converter. |
| Output power is stable with high performance. |
| Planetary, power shift transmission with three speeds forward and
three speeds reverse. Speed and direction can be quickly shifted. |
| Travel speed (in theory 1900/min engine speed ): |
| Forward Reverse |
| First speed 0— 3.32 km/h First speed 0— 4.00 km/h |
| Second speed 0— 6.26 km/h Second speed 0— 7.57 km/h |
| Third speed 0— 11.40km/h Third speed 0— 13.87km/h |
| Steering and braking | |
| The steering clutch is tighten by pressured springs and separated
hydraulically with oil-type, multi-powder-metal discs. |
| The brakes are oil, two-direction floating band with mechanism foot
pedals, hydraulic boosted. The steering and braking can be actuated
in one control. |
| Transmission, steering and braking operation | |
| The operation of transmission , steering and braking is controlled
by single lever . Transmission, left and right steering and braking
can be realized for three speeds forward and three speeds reverse
by one handle . |
| Final drive | |
| The final drives are double reduction with spur gear and segment
sprocket, which are sealed by duo-cone seal |
| Undercarriage system | |
| The undercarriage is section steel welded track roller frame with
diagonal brace. |
| The track rollers, carrier rollers and front idlers have the same
floating seals which are long-service life and seal well. |
| Number of track rollers: 4 single-flange on each side |
| 2 double-flange on each side |
| Number of carrier roller : 2 on each side |
| Number of front idler: one on each side |
| Track type: single grouser, modular type. |
| Track adjuster type: by hydraulically adjust |
| Pitch: 203 mm |
| Numbers of shoe: 38 |
| Width of shoe: 500mm |
| Length of track on ground: 2570mm |
| Sealed and lubricated track (0ptional parts) |
| The pitch, number of shoes, width of shoe are the same with
ordinary track |
| Implement hydraulic system | |
| It consists of two group gear pump ,pilot valve, main valve ,
cylinders, oil filter and lines. |
| Pump type: two group gear oil pump |
| Pump flow : |
| Front pump : 190L /min Pilot pump : 19L /min |
| System pressure: 12MPa |
| Basic hydraulic system |
| Pump type: gear oil pump |
| System output: 135 L/min |
| System pressure: 2.35MPa |
| Cab | |
| The cab with adjustable seat features low noise and wide visible
range and contains electrical fan. |
| The different kinds of cabs as follow can be chosen: |
| 1. Cab with air-conditioner |

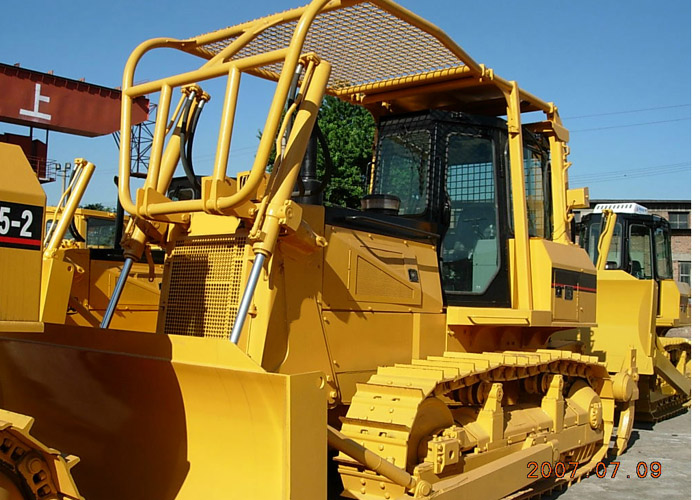

| 2. Cab with Rops canopy |
| 3. Rops. |
| Service refill | |
| Fill location Capacity(L) |
| Radiator and diesel engine water: 60 |
| Lubricating system of diesel engine Oil: 27.5 |
| Flywheel house, Torque converter , |
| Transmission, bevel gear case Oil: 95 |
| Final drive(each side) Oil: 24 |
| Implement hydraulic system Oil: 85 |
| Fuel tank Oil: 230 |
| Track roller, carrier roller, front idler(each) Oil: 0.35 |
| Blade specifications |
| Blade: Straight |
| Width 3297 mm |
| Height 1170 mm |
| Max digging depth: 420mm |
| Max. ground clearance: 852mm |
| Tilting angle: 8.5° |
| Blade capacity: 4.5m 3 |
| Ripper specifications | |
| Number of shank : three |
| Length : 1580mm |
| Width : 2020mm |
| Max. Penetration depth : 550mm |
| Max. Lifting height : 510mm |
