    3 Ton Airport Ride-on Forklift With 2230MM Min Turning Radius 2500 kg Rated Capacity

    Ask Lasest Price
    Brand Name : KUDAT
    Model Number : CPQYD30
    Certification : ISO / CE
    Price : negotiation
    Payment Terms : L/C at sight, T/T or western Union
    Supply Ability : 1500 units per month
    Delivery Time : 15 working days after received L/C or your deposit
    • Product Details
    • Company Profile

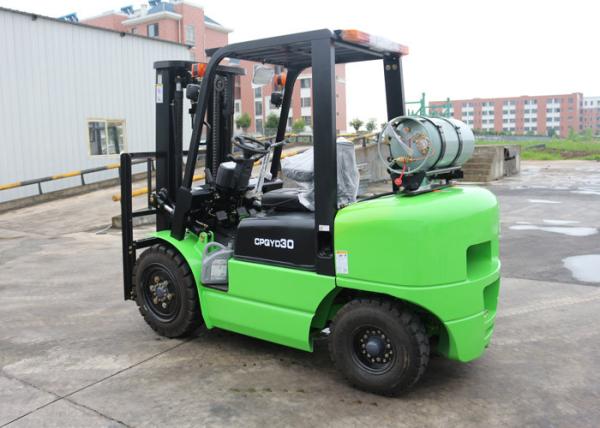

    3 Ton Airport Ride-on Forklift With 2230MM Min Turning Radius 2500 kg Rated Capacity

    3 Ton Ride-on Forklift With 2230MM Min Turning Radius 2500 kg Rated Capacity

    LPG Forklift Petrol Forklift Gasoline Forklift With Complete USA IMPCO LPG System

    Description:

    About LPG forklift trucks: Kudat brand LPG forklift is available with a loading capacity ranging from 2 tons to 4 tons. Kudat LPG forklift utilizes world famous engine GM to provide moderate power, high reliability, low fuel consumption and low noise. These types sale well in America area and operate well in many applications.
    Advantage of gas forklift: An innovative operator compartment design offers easy driver access, excellent all-round visibility and conveniently located controls. These LPG forklifts adopt Germany technology, which greatly enhances the reliability and meets the Europe Standard.

    Main Features:

    • Chine wanfeng or Nissan gasoline engine.
    • 3M 2Stage duplex mast.
    • High-quality with lower price.
    • load capacity 3000kg.


    Specifications:

    Model

    Unit

    CPQYD30

    Power type



    Gasoline/LPG

    Rated capacity

    kg

    3000

    Load center

    mm

    500

    Max Lifting height

    mm

    3000

    Free lift height

    mm

    160

    Fork size(L*W*T)

    mm

    1070×125×45

    Tilting Angles(Front/Rear)

    deg

    6°/12°

    Front overhang

    mm

    479

    Exterior Size

    Length without fork

    mm

    2682

    Overall width

    mm

    1225

    Mast drop

    mm

    2065

    Max. lift

    mm

    4262

    Front-wheel Overhead

    mm

    2090

    Min Turning Radius

    mm

    2400

    Min. intersecting aisle

    mm

    2380

    Speeds

    Max Driving speeds

    km/h

    18/19

    Lifting speeds

    mm/s

    440/480

    Lowering speeds

    mm/s

    450/500

    Max. grade ability

    %

    20

    Total weight

    kg

    4270

    Tires

    Front



    28×9-15-12PR

    Rear



    6.50-10-10PR

    Wheelbase

    mm

    1700

    Tread

    Front

    mm

    1000

    Rear

    mm

    970

    Min. ground clearance

    mm

    135

    Engine

    Model



    Chinese GQ-4Y Gasoline engine

    Rated output

    kw/rpm

    34/2500

    Rated torque

    N.m/rpm

    142/1800

    No. of cylinder



    4

    Displacement

    L

    2.237

    Fuel tank capacity

    L

    60
