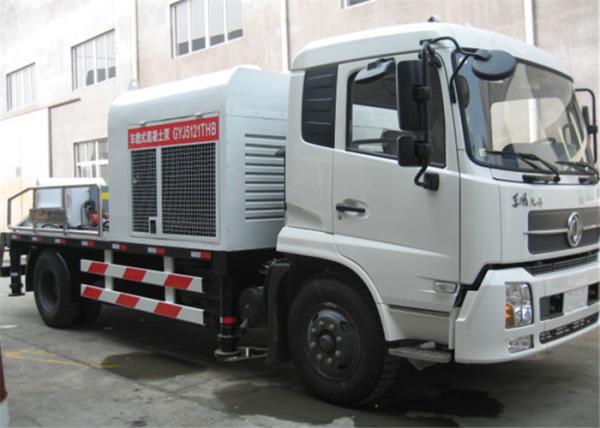

Cummins Engines Hydraulic Concrete Pump , 0.9CBM Hopper Truck
Mounted Concrete Pump
90m3/h Truck Mounted Concrete Pump 5120THB - 1616 - 90 With
DongFeng Chassis For Concrete Pumping Works
90m3/h Truck Mounted Concrete Pump 5120THB - 1616 - 90
Specifications:
Model | 5120THB-1612-120 | 5120THB-1616-90 |
|---|
Max . concrete pump pressure(MPa) | High pressure | 12/7 | 15.7/9.2 |
|---|
Max. thero. Concrete delivery(m³/h) | Low pressure | 70/120 | 52/90 |
|---|
Diameter of delivery cylinder ×stroke (mm) | Φ230×1650 | Φ200×1650 |
|---|
Oil cylinder ×stroke (mm) | Φ140×1650 | Φ140×1650 |
|---|
Engine | Type | Diesel |
|---|
| Power(KW) | 174 |
|---|
Main pump | Rated pressure (MPa) | 32 |
|---|
| Rated flow (L/min) | 437 |
|---|
Hopper capacity/ material feeding height(m3/mm) | 0.9/1400 |
|---|
Hydraulic oil tank capacity (L) | 460 |
|---|
Overall dimension (LxWxH) (mm) | 8499×2470×3134 |
|---|
Wheel base (mm) | 4700 |
|---|
Total weight (kg) | 12000 |
|---|
Chassis | DONGFENG |
|---|
Engine power(KW) | 132 |
|---|
Displacement(L) | 4.5 |
|---|
Emission Standards | Euro Ⅳ | Euro Ⅳ |
|---|
Dongfeng chassis - Super bearer
1 . Quality selection of leading a new generation of domestic
Dongfeng
(DFL1120B13) chassis, lying flat headband, using Cummins engines.
2 . A mature, reliable, strong power, excellent performance, fuel
economy, reliability
and durability advantages.
3 . Elegant and chic appearance, ride comfort.
4 . Users can the EURO Ⅲ, Ⅳ emission standards to choose between on
demand.
5 . Using international famous brand Deutz (DEUTZ) six-cylinder
diesel engine.
6 . Powerful: high power, high efficiency.
7 . Energy saving: low emission, low fuel consumption, low
vibration, low noise,
etc..
8 . Reliable and durable: long life, overhaul a long time, easy
maintenance interior
maintenance.
