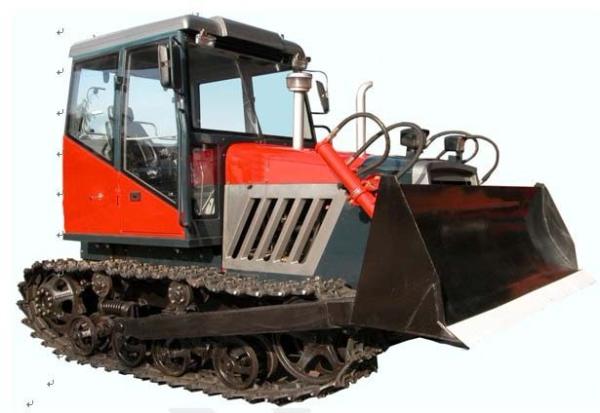

Diesel Engine Steel / Rubber Track Mini Crawler Bulldozer for
Agriculture Use
Mini Crawler Bulldozer C802 , 80HP Power, for Engineering
Construction , Agriculture Use
Feature:
1. The 70-90HP crawler tractor is manufactured with fully enclosed
cab. Heating system, air condition, and audio system are optional.
Besides the broad vision, users can also enjoy the nice appearance
and the comfortable operation.
2. For optimal trafficability and steering performance, this range
of agricultural vehicle can be designed with rubber track.
3. The utilization of hydraulic power steering gear greatly reduces
driver’s labor intensity.
4. To obtain good reliability, our rubber tracked crawler adopts
simple beam structure for the final gear.
5. The new seal structure for the rear gear of our 70-90HP crawler
tractor can reduce the steering oil intake.
6. The crawler tractor with cab adopts (4F+2R) sliding-gear
transmission. The reasonable gear range makes it suitable for
farmland and bulldozing.
7. Equipped with the diesel engine produced on the basis of British
technology, our diesel crawler tractor is quite popular due to the
large torque, powerful overload capacity, low fuel consumption, and
environmental protection.
Specification:
| Type | C802 |
| Overall dimensions L×W×H (mm) (With blade) | 4870×2462×2766 |
| Overall dimensions L×W×H (mm)(Without blade) | 4466×1835×2766 |
| Operating weight (kg) (With blade) | 6630 |
| Track gauge (mm) | 1435 |
| Wheel base (mm) | 1622 |
| Track width (mm) | 390 |
| Ground pressure (kPa) (With blade) | 47.4 |
| Engine |
| Engine type | LR4A3Z-22 |
| Rated power output (kW) | 58.8 |
| Rated speed (r/min) | 2200 |
| Gear box |
| Number of speed gear (forward/reverse) | 4/2 |
| Speed range(Km/h) forward/reverse | 3.67~9.03/3.51~5.59 |
| PTO shaft power (KW) | 49 |
| PTO rotational speed (r/min) | 750 |
| Working device |
| Type of linkage | Postposition double-point linkage or three-point class two linkage |
| Depth control method | Height adjustment |
| Lifting force(KN) | 14 |
| Blade dimensions height ×width(mm) | 2462×850 |
| Drop below ground (mm) | 290 |
