Cummins Engine Motorized Grader , 500MM Cutting Depth Heavy Construction Equipment

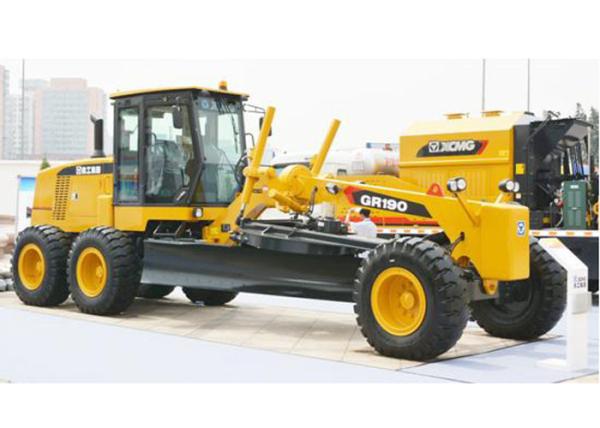

XCMG Brand Road Machinery GR190 Motor Grader With 190HP Cummins Engine and 500MM Maximum Cutting Depth

Description:

GR series of motor grader are mainly used in the operation of road surface leveling,

ditch digging, slope leveling, bulldozing, scarification and snow removing on the

road, airport and farmland. The motor grader is the necessary construction

machinery for defense construction, mine construction, urban and rural road

construction and irrigation works and farmland improvement.

Features

• Brake System:The travelling brake system adopts the hydraulic components of Rexroth (Germany).
• Steering system: Adopting sensor with load.
• Chassis:Being of welded structure, just like a box, so it is strong enough to ensure no deformation.
• Cabin:with wide-field vision, low noise, ultraviolet-protection glass, and with Curtis (of USA) or VDO (of Germany) instrument panel, height-adjustable seat, radio, ashtray, cup-seat etc.
• Slewing Mechanism: Be fitted with hard material lining, which ensures easy and flexible move of the blade, and high-accuracy flatness and low-cost maintenance as well.
• Operation System: Forward/backward adjustable opertion Panel, with HUSCO multi-way valve, electrically- controlled ZF gearbox, so it is quite easy to make any operation.

Optional Equipment:

Automatic leveling unit

Front blade

Rear rippe

Specifications:

Basic specification
Engine model	Cummins 6CTA8.3 Engine
Rated power/speed	138kW/2200rpm
Dimension(LxWxH)	8900×2625×3470mm
Operating weight(Standard)	15400kg
Tire	17.5-25
Mini ground clearance	430mm
Distance between front and rear axles	6219mm
Distance between middle and rear wheels	1538mm
Performance specification
Travelling speed ,forward	5,8,11,19,23,38 km/h
Travelling speed ,reverse	5,11,23 km/h
Tractive force(f=0.75)	79KN
Max. gradeability	20%
Tire inflation pressure	260 kPa
Working hydraulic pressure	16 MPa
Transmission pressure	1.3～1.8MPa
Operating specification
Max. steering angle of front wheels	±50°
Max. lean angle of front wheels	±17°
Max. oscillation angle of front axle	±15°
Max. oscillation angle of balance box	15
Frame articulation angle	±27°
Min. turning radius using articulation	7.3m
Blade
Maximum lift above ground	450mm
Maximum depth of cutting	500mm
Maximum blade position angle	90°
Blade cutting angle	28°—70°
Circle reversing rotation	360°
Moldboard width X height	3965×610mm
