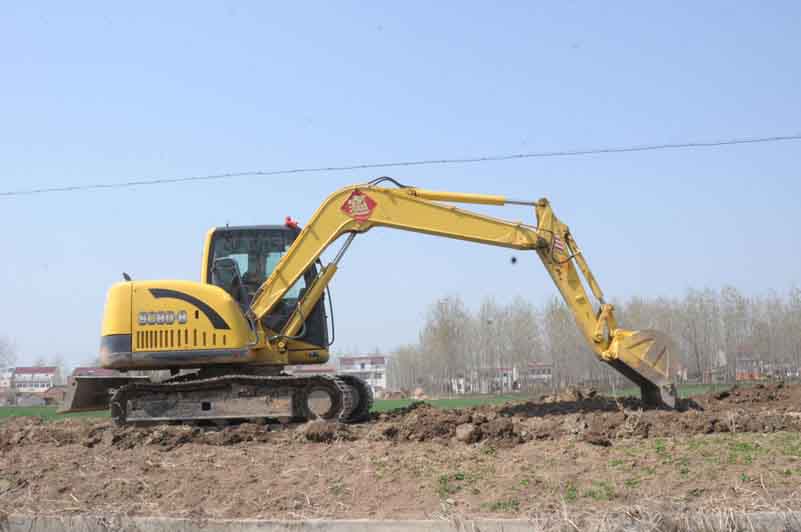

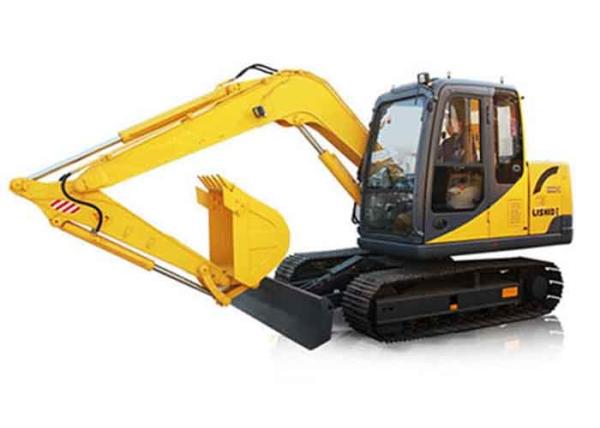

Item

Unit

Value

Arm cylinder 100×60

Arm cylinder

100×60

Engine (originally imported)

Model

B3.3(Cummins)

Battery

(v,Ah)

12V,120

Alternator

(A)

12V,60

Start motor

(Kw)

12V,2.2

Max. torque

(N.M/rpm)

214/1600

Rated output

(Kw/rpm)

45/2200

Overall piston displacement

(L)

3.3

No. of cylinder

bore×stroke (mm)

4-95×115

Type

4 strokes, water cooling, inline, top-installed valves, direct injection

Working device (Standard type)

Standard bucket

m³

0.28

Light bucket (optional)

m³

0.37

Small bucket (optional)

m³

0.20

Undercarriage

Amount of carrying wheel

1 each side

Length of track on ground

(mm)

2130

Track center distance

(mm)

1700

Standard track plate

38 pieces each side

Support wheel

5

Hydraulic system/ control valve (TOSHIBA)

Type

iB18

Slewing motor (TOSHIBA)SG025E

piston type (safety valve, parking brake)×1

Travel motor (TOSHIBA)

piston type (safety valve, parking brake)×2

Control method

hydraulic pilot type

Hydraulic system/hydraulic pump (TOSHIBA)

Type×No.

measurable piston pump ×l

Set pressure

(Mpa)(Kg/cm²)

piston type: 300(300)

Flow

(L/min)

piston type: 154

Hydraulic system/ hydraulic cylinder (Reciprocating piston type)

Boom cylinder

A Overall length (transportion)(mm)

6103

C Overall height (boom top)(mm)

2515

D Overall width (mm)

2198

E Overall height (cab top)(mm)

2630

G Min. ground clearance(mm)

381.5

H Min. slewing radius of working device (mm)

1792

I Length of track on ground(mm)

2130

J Track length (mm)

2757

K Track gauge(mm)

1700

L Overall length of track (mm)

2150

M Width of track plate(mm)

450

N Thickness of track plate(mm)

26

O Min. slewing radius of working device Upper height (mm)

5496

R Tail slewing radius(mm)

1755

Bucket capacity(m³)

0.28

Bucket capacity(m³)

0.28

Engine power (Kw/rpm)

45/2200

O Max. digging height (mm)

7165

P Max. dump height(mm)

5068

R Max. vertical digging height(mm)

3505

T Max. digging radius(mm)

6333

U Max. ground digging radius(mm)

6182

Max. bucket digging force(kN)

52.7

Slewing speed(rpm)

11.2

Travel speed (km/h)

L:2.7 H:5.1

Gradeability

35

Ground pressure(kPa)

30
