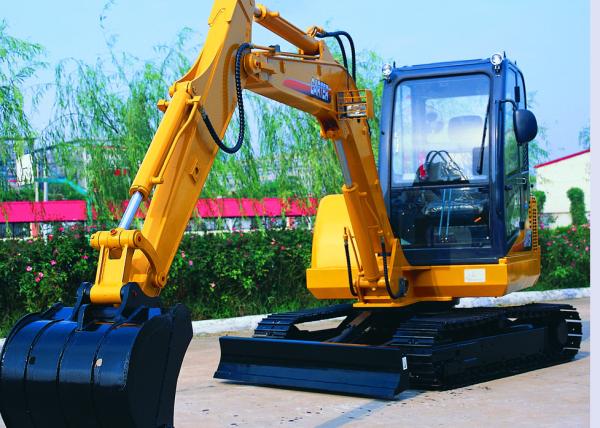

    Yanmar Engine Mini Hydraulic Attachments Excavators 5530 Mm Max Digging Reach

    Ask Lasest Price
    Brand Name : Visbull
    Model Number : CT45-7B
    Certification : Ghost/ISO/SGS/CE
    Price : negotiation
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 2000 units per month
    Delivery Time : 10 working days after received L/C or your deposit
    • Product Details
    • Company Profile

    Yanmar Engine Mini Hydraulic Attachments Excavators 5530 Mm Max Digging Reach


    1. Have passed CE certificate
    2. Originally imported Yanmar engine 4TNV88(25.2KW/2200rpm), low noise, low fuel consumption, big torque;

    3. Main pump, valve, swing motor and travel motor are equipped with originally imported KYB

    4. Date collected by sensors to prompt power system and hydraulic system cooperate well to improve 10% dig force

    5. Hydraulic pipe from America Gates with reliable quality
    6. X Shape undercarriage guarantee the stability in bad work condition

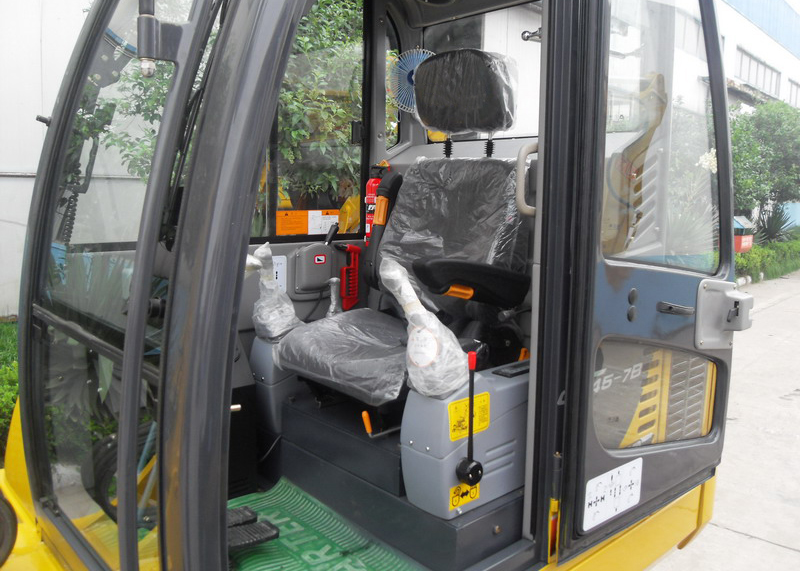

    7. Standard equipment Air Conditioner


    Excavator modelCT45-7B with cabin
    The following are the prices for optional attachments
    Name Remark
    Hammer Top type
    Hydraulic quick hitch
    The following are the prices for various buckets
    Name Remark
    350mm Rock bucket With 2 teeth
    620mm bucket Standard bucket, with 4 teeth
    780mm bucket With 5 teeth
    850mm Tilting bucket Without teeth
    1200mm bucket Without teeth

    Loading
    Container body size 40HQ:12000*2130*2720(LxWxH)load 3 units in one 40HQ container

    Specification of CT45-7B with cabin
    Operate weight kg4200
    Bucket capacity M30.17
    Engine modelYANMAR 4TNV88 @27KW
    Engine power(kw)27
    Swing spreed(rpm)11
    Ground pressure(Kpa)29
    Travel speed(km/h)4.4/2.7
    Tracking force(kn)34.1
    Gradeability(°)30
    Main dimensions
    Upper structure witdth (mm)1600
    Under carriage width(mm)1750
    Cabinet hight(mm)2455
    Rear swing radius(mm)1600
    Ground clearance(mm)350
    Working range
    Max.digging radius(mm)5530
    Max.digging depth (mm)3405
    Max.digging height(mm)5030
    Max.dumping height(mm)3410
    Max.dozer cutting depth(mm)380
    Max.dozer lifting hight(mm)255
    Standard Equipment
    Japanese KYB main pump PSVD2-21E-14
    Japanese KYB tracking motor MAG-26VP-370F-1
    Japanese KYB swing motor MSG-27P-18E-5
    Italian valve ,pilot control lever
    Japanese Multi-function Valve
    Warranty,Payment and Delivery
    1 Warranty Term: 1200 working hours or 1 year, whichever come first
    2 Payment Term: 100% T/T or Irrevocable L/C payable at sight
    3Time of delivery: 30 days for models with standard equipment, after receipt of L/C or 30% T/T down payment.
