    3CBM 4WD Mini Mobile Concrete Pan Mixer , 3000L Self Loading Construction Mixer Machine

    Ask Lasest Price
    Brand Name : Visbull
    Model Number : KDMT-3
    Certification : CE/SGS/ISO9001
    Price : Negotiation
    Payment Terms : D/A, L/C, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1,000pcs per month
    Delivery Time : 25-30 working days after received your payment
    • Product Details
    • Company Profile

    3CBM 4WD Mini Mobile Concrete Pan Mixer , 3000L Self Loading Construction Mixer Machine

    3CBM 4WD Mini Mobile Concrete Pan Mixer , 3000L Self Loading Construction Mixer Machine

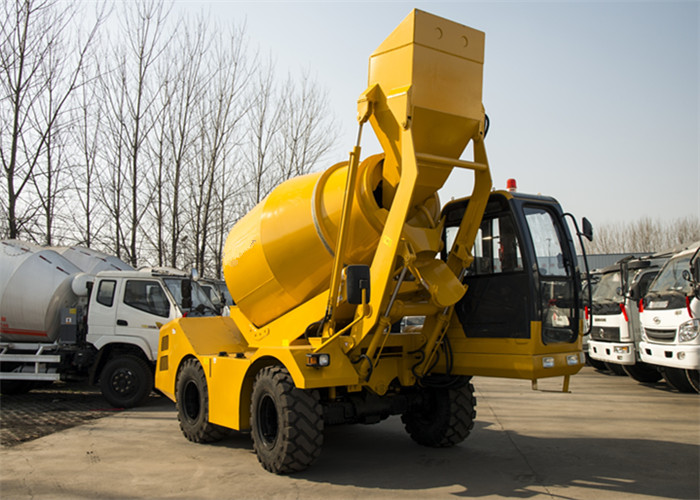

    3CBM 4WD Mini Mobile Self - Loading Concrete Mixer Truck KDMT-3 With 93KW Power Diesel Engine And ROPS-FOPS Cabin

    3000L Mixing Capacity Self - Loading Concrete Mixer KDMT-3


    Specifications:


    Vehicle

    Curb weight

    kg

    7300

    Drive


    4 wheels

    Steering

    mm

    Front wheels

    Tyre

    mm

    17/16-20

    Transmit speed

    km/h

    0-23

    Working speed

    km/h

    0-9

    Gradient

    °

    15

    Dimension(for shipping,

    shovel dismantled)

    (L*W*H) mm

    5300*2450*3360


    Engine

    Model


    Dongfeng Cummins 4BTA3.9-C125

    water-cooled, 4 cylinders.

    Power

    kw/r/min

    93kW(126.5HP)/2200rpm

    Emission

    L

    3.9


    Mixing drum

    Geometrical volume

    m3

    5

    Mixing capacity

    m3

    3

    Inclined angle

    °

    16

    Feeding speed

    m3/min

    1.5

    Discharging speed

    m3/min

    1

    Remnant rate

    %

    ≤1

    Slump rate

    mm

    160-230 ±30%

    Hydraulic system

    Hydraulic pump


    Imported Bosch Rexroth pump

    Hydraulic motor


    China top brand

    Speed reducer


    China top brand

    Water supply

    Water tank capacity

    L

    300

    Supply method


    Hydraulic driven water pump


    Engine:diesel Cummins 4BTA3.9-C125, water cooled, 4 cylinders. Rated power 93kW(126.5hp)

    set at 2,200rpm. Engine mounted transversal on the rear.Transmission: Bosch Rexroth pump.

    Pump and motor are connected to the differentials through a 2 speed reducer (working and transfer).

    4 wheel drive and front wheel steering.


    Mixing unit: Double mixing screws. Drum rotation by hydraulic motor and planetary reducers. Mixing

    and discharging speed independent from r.p.m of diesel engine. Discharge concrete by reversing drum.

    The mixing unit is slewing hydraulically through 300°for high discharge over 2m to the four sides of the

    vehicle.


    Loading shovel: Capacity 600 liters complete with hydraulic opening gate.


    Speed: Working speed from 0 to 9km/h, road transfer from 0-23km/h.


    Driving seat: Front cab on side of loading shovel. ROPS-FOPS type.


    Hydraulic system: three circuits. 1 variable outlet pumps for hydrostatic transmission and drum rotation.

    2 gear pumps for services. Inlet and outlet filter.


    Joymix: All hydraulic functions of shovel controlled by a single fully servo controlled joystick.


    Electric system: 24 Volt battery for electric starter and road lighting.


    Chute: Slewing and manual tilting. Easy detach for the convenience of discharging.


    Water system: Self contained. Hydraulic driven water pump, water meter, washing outlet. High pressure

    water pump.


    Gradient: Fully loaded 30%.


    Brakes: Oil bath disc brakes inside differential axles. Twin independent circuits.


    Tanks: Water 300 liters. Diesel 128 liters. Hydraulic oil 140 liters.


    Chassis: Steel profile specially engineered for off-road operations.


    Weight: About 7,300kg equally distributed on both axle
