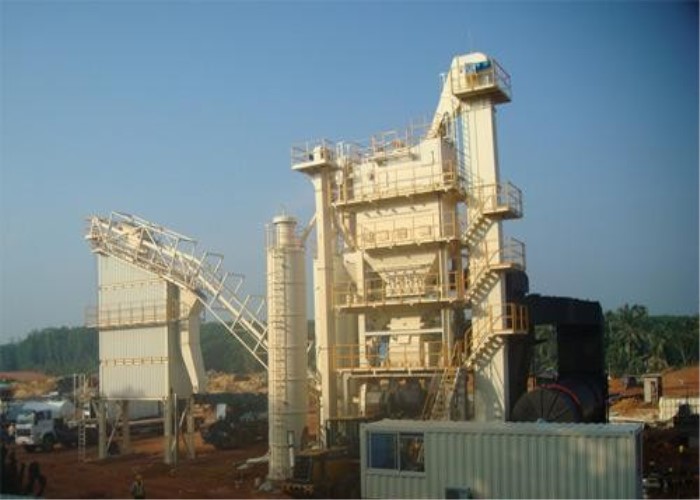

330 KW Programmable Control Asphalt Mixing Plant / asphalt batch plants BIG Capacity

1500kgs Mixer Capacity Mobile Asphalt Batching Plant AMP1500 - C With Dryer Drum

Major specification

Illustration: The plant is designed for a production of 90~120 t/h of road mix asphalt with a finished product temperature of 160ºC, under the following standard conditions:

• Maximum production: 120 t/h
• Maximum mixing capacity: 1,500 kg / batch
• Rate output included aggregate, bitumen and filler
• Bitumen weighing accuracy: ≤±1% (Continuous real-time detect)
• Aggregate bitumen ratio accuracy: ≤±0.3%
• Filler weighing accuracy: ≤±2% (Continuous real-time detect)
• Aggregate weighing accuracy: ≤±2% (Continuous real-time detect)
• Fuel consumption (diesel): ≤6.5 kg/t
• Aggregate temperature accuracy: ≤±3ºC
• Noise level in control room: ≤70 db(A)
• Working environment noise level: ≤80 db(A)
• Standard layout area approx. 35 m x 30 m (Flexible to be adjusted to fit actual job site limitation)
• Dust emission (Filter bag system): ≤90 mg/Nm³
• Operation voltage: 330kW
• Working voltage: 380V/50 HZ
• Operation: Automatic / Manual / Fully computer controlled
• Working altitude level: ＜2,500 m
• Desired environment temperature: 20 ~ 50ºC
• Aggregate density; 1,700 kg/m³
• Aggregate moisture content; ≤5%
• Fuel Calorific value ≥9500kcal/kg
• Ph value: ≥7
• Material not porous and hygroscopic with normal shape

Any deviation of above-mentioned working condition may cause fluctuated production of plant.

1.0 Cold Feed System

• Imported Frequency Converter Controller for Belt Feeders, places typical magnetic speed controller.
• No flow switches for every hopper, signal to control room for run out of aggregate or blockage.
• Speed adjustment of Frequency Converter in control room, easy operates, visible on screen, reliable operation, stable accuracy adjustment, and low malfunction performance.
• Reduce foul material benefits save energy, increase heat efficiency, protect Dryer Drum, increase reliable operation of Hot Elevator and Screen Deck, and finally increase working life of equipment.
• Vibrators for sands hoppers, avoid material blockage; oversize meshes for hoppers, avoid large aggregate to system, provides reliable operation of system.
