170KW Mobile Hot Drum Mix Asphalt Plant , 5M3 Aggregate Hopper Concrete Mixing Plant

60tons / Per Hour Mobile Hot Asphalt Mixing Plant QLB-60 With 170KW Power And 5M3 Aggregate Hopper

60 TPH Mobile Asphalt Batching Plant QLB-60 With Oil Burner / Coal Burner

Specifications:

Applications:

QLB series asphalt mixing plant is for high grade road, such as highway.Airport

Runway.

Mobile asphalt batching plant using twinhorizontal shafts force mixer saves stirring

time and makes bitumen wrapping in a high degree. It blade, vane and mixing arms

are made of special wear resisting material and they can work longer.

Material - addgate with double air cylinder is in turning form which saves time and

increase the

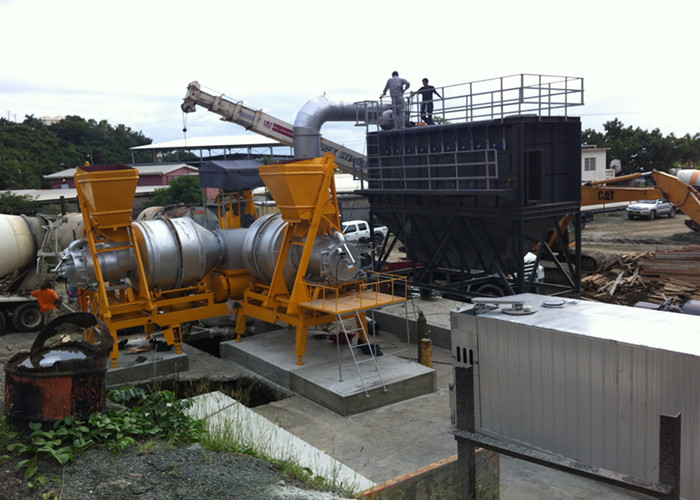

sealing. It consists of dryer drum, burner, central venting, forced mixer, finished silo

and three bin feeder for cold aggregates.

Competitive Advantage:

1). Integrated design of drying and mixing in drum, reduce initiate cost for customer;
2). Accurate weighing, and stable quality;
3). Simple structure, easy operation, drying while drum rotate in counter - clockwise

direction(from burner), discharging while drum rotates in clockwise direction(from

burner), and the wind are swirled in the center of the drum;
4). PLC control, touch screen, auto/manual switchable;
5). Towing chassis for easy transport and installation;
6). Burner is available for coal and oil, at customer's option.

Description:

1) Rated productivity: 60tph, 80tph

2) Suitable material: bitumen, aggregate

3) Feeder hopper capacity: 1,500kg x 2, 1,600kg x 2

4) Main power: oil burner 153kW, 176kW, coal burner 200kW, 239kW

5) Product temperature: 120~165°C, adjustable

6) Burner: oil, coal and oil

7) Control system: PLC, auto- control and manually,electronic cabin and control

panel,touch screen, control room

Since 1990, Wuhan Visbull Machiney Co., Ltd. has exported engineering machinery, Construction machinery and agricultural machinery machinery to international markets. Satisfying customers' stated and implied needs has always been the focus of business policy of Visbull. As a futher step to satisfy customers and to give them confidence in our quality and production capabilities, Visbull has adopted ISO 9001:2000, the international quality management system. And some of our products have also passed CE and EPA certification.

With a rich inventory of numerous products and vast sourcing capabilities (more than 60 famous manufactures) cater to the requirements of its customers. Except abundant of products, we also set up factory for studying and producing relative machinery products.

From base to top, Visbull holds a unique position in the global market of machinery products which is combination of production and trade. With more than 20 years experience in the export of machinery products, Visbull has gained reputation and confidence as a reliable Chinaese Supplier. By Virtue of committed management and dedicated emplyees, Visbull has gained recognition from the government of China as excellent exporter.
