    XCMG Concrete Asphalt Paver Machine Rental , 12 tons Hopper Capacity Road Paving Machine

    Ask Lasest Price
    Brand Name : Visbull
    Model Number : RP403
    Certification : CE/SGS
    Price : Negotiation
    Payment Terms : D/A, L/C, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500pcs per month
    Delivery Time : 25-30working days after received your payment
    • Product Details
    • Company Profile

    XCMG Concrete Asphalt Paver Machine Rental , 12 tons Hopper Capacity Road Paving Machine

    XCMG Concrete Asphalt Paving Equipment Rental , 12 tons Hopper Capacity Road Paving Machine


    4200mm XCMG Asphalt Concrete Multi Function Paver RP403 With 200mm Paving Thickness And 12tons Hopper Capacity
    Specifications:

    ltem

    Unit

    Parameter

    Theoretical productivity

    t/h

    300

    Max working Width

    m

    4.2

    Max Paving Thickness

    mm

    200

    Paving Speed

    m/min

    30

    Flatness

    mm/3m

    2

    Compactness

    %

    ≥80

    Dense irregularity

    %

    <5

    Traveling Speed

    km/h

    3.6

    Drive type


    Crawler

    Gradient Ability

    %

    20

    Hopper Capacity

    t

    12

    Hopper Width

    mm

    3215

    Hopper Length

    mm

    1935

    Engine Type


    BF4M2012C

    Rated Output

    KW

    75

    Speed

    rpm

    2200

    Fuel Tank Capacity

    L

    130

    Weight

    t

    11.5~12

    Overall Dimension

    mm

    5535×1800×3580

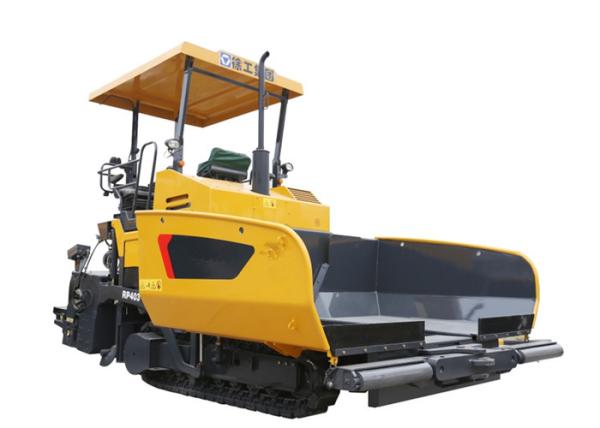

    RP403 asphalt paver is the first fully hydraulic crawler small paver, the machine

    uses full hydraulic drive, electro hydraulic proportional control, a high level of

    automation, good handling, system configuration and paving of high quality.


    Advantages:


    1 . Crawler device about independent drive system uses micro computer

    control, traction, steering smooth and flexible;

    2 . 1.8 meters wide compact body design, coupled with the steering can place the

    walking function, making it .

    3 .Particularly suitable for confined areas and Bent Road Pavement construction

    operations, the aircraft can be used in sidewalks, bike paths, farm roads, residential

    roads and other small paved roads, and conservation of the job grade highway.

    4 . Large capacity hopper and the hopper can be independently controlled about

    adaptability broader, more flexible;

    5 . Power reserve sufficient, and about crawler is independently driven, the driving

    force is stronger, more stable running;

    6 . Narrow fuselage, with a hydraulic telescopic screed, transitions and more

    convenient, easier operation;

    7 . Optional narrowing means the minimum paving width of only 0.8 meters, suitable

    for road maintenance operations.
