    Big Torque Travelling Heavy Equipment Excavator with Tracked Pontoon Structure

    Ask Lasest Price
    Brand Name : Visbull
    Model Number : ZY150SD-1
    Certification : Ghost/ISO/SGS
    Price : negotiation
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 500 units per month
    Delivery Time : 10 working days after received L/C or your deposit
    • Product Details
    • Company Profile

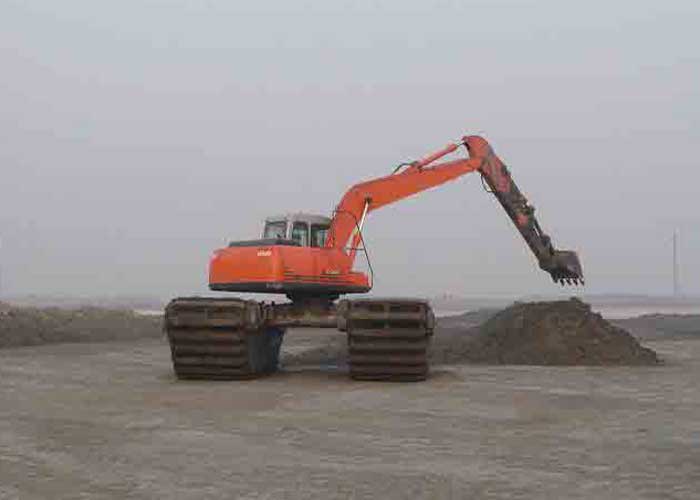

    Big Torque Travelling Heavy Equipment Excavator with Tracked Pontoon Structure

    Big Torque Travelling Heavy Equipment Excavator with Tracked Pontoon Structure


    20 ton 0.4 CBM Bucket Hydraulic Amphibious Excavator With ISUZU Engine 89.3KW rated power

    Feature:


    1. Tracked pontoon structure ensures low ground pressure so that it can travel and work on swamp and soft areas. It can be towed to move forward on water also.

    2. Big torque travelling devices ensure strong driving force when turning and climbing.

    3. The extendable chassis not only improves working stability, but also allows transportation of whole machine without dismantling.

    4. Big circular are structure on both ends of pontoon reduces travelling resistance.


    Specifications


    Operating weight

    20000kg

    Standard bucket capacity

    0.4m3

    Boom length

    6100mm

    Arm length

    3900mm

    Chain

    2 chains

    Engine

    Model Isuzu

    4BG1

    Type

    Turbe-charged

    Power

    89.3kW/2200rpm

    Max. torque

    449N.M at 1800rpm

    No. of cylinders

    4

    Displacement

    4.3L

    Hydraulic system

    Main Pump


    Type

    Variable displacement axial piston pumps

    Max. displacement

    2×63cm3/r

    Max. flow


    Working pressure

    30MPa

    Hydraulic motor


    Slew

    Fixed displacement axial piston motor

    Travel

    Variable displacement axial piston motors

    Performance


    Slew speed

    13.6rpm

    Min slew radius

    3011mm

    Max. travel speed high/low

    3/2.1km/h

    Gradeability

    30°

    Tractive effort

    157.5kN

    Max. digging force of bucket

    72kN

    Max. digging force of arm

    51kN

    Ground pressure

    0.14kg/cm2

    Tank capacity


    Fuel tank capacity

    217L

    Hydraulic tank capacity

    217L


    WORKING RANGE

    A Max. digging reach

    10811mm

    B Max. digging reach on ground

    10481mm

    C Max. digging depth

    7360mm

    D Max. vertical digging depth

    5419mm

    E Max. cutting height

    11352mm

    F Max. dumping height

    9205mm

    G Mini front slew radius

    2914mm


    Dimensions

    A length of pontoon

    7170mm

    B ground clearance of platform

    1935mm

    C height of cabin

    3764mm

    D Boom transport height

    3390mm

    E overall length

    10375mm

    F rear swing radius

    2319mm

    G Track gauge

    3629mm

    H overall width

    5120mm

    I width of pontoon

    1490mm

    J min ground clearance

    1192mm

    K height of pontoon

    1718mm

    L max. upper structure width

    2470mm
