    Heavy Equipment Excavator , 0.4 M3 Bucket Capacity 8 Tonne Wheeled Excavators

    Ask Lasest Price
    Brand Name : Visbull
    Model Number : KD890-9A
    Certification : Ghost/ISO/SGS
    Price : negotiation
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 500 units per month
    Delivery Time : 10 working days after received L/C or your deposit
    • Product Details
    • Company Profile

    Heavy Equipment Excavator , 0.4 M3 Bucket Capacity 8 Tonne Wheeled Excavators

    Heavy Equipment Excavator , 0.4 M3 Bucket Capacity 8 Tonne Wheeled Excavators

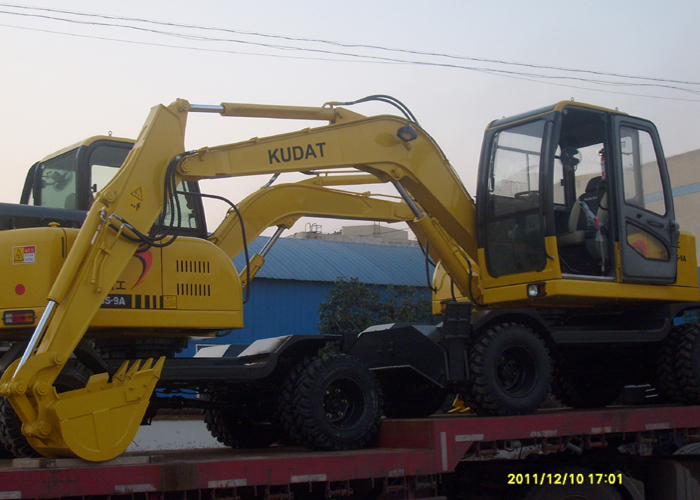

    8000KG 0.4 CBM Bucket Wheel Excavator KD890-9A With 56KW diesel engine

    Product feature:


    1. Power strong, stable performance, reliable work, my company is mature models, with tire inflation interface, optional fuel filling machine.


    2 Hydraulic system used by the main components for the international famous brand, independent of the pilot system, perfect matching, rational layout, highlighting the space inside the car.


    3. Strengthen the turntable, arm length, with a greater range, wide adaptation to the environment.


    4 . Stable chassis, with a shovel, a leg, after full hydraulic support, with full ground lifting capacity. Chassis with wash box, toolbox, butter bucket support tool.


    5 The cab air-conditioning, audio, luxury seats, comfortable control.


    6. Harness the standardization, neat, beautiful, convenient assembly view. Intelligent color screen, with a character display, the parameter can be easily read oil quantity, temperature, pressure, engine speed, mileage.


    7. Shape independent design, stable atmosphere. Outside the open mechanism, easy to repair, maintenance. With a big arm working lamp, headlight, convenient for operation at night.


    8 Optional gripper, hammer crusher, rotary devices and other equipment, realize multiple functions.


    Product parameter:

    SPECIFICATIONS

    Operating weight

    Kg

    8000kgs

    Engine model


    A498BZG-09

    Engine power


    56 Kw/2000rpm

    Bucket capacity

    M3

    0.4

    Working pressure

    Mpa

    21

    Rated flow

    L/min

    55*2

    Swing speed

    rpm

    10

    Travel speed

    Km/h

    0-30

    Max. hauling force

    KN

    47

    Max. torque

    N.m/rpm

    292/1600

    Grade ability

    %

    25

    Fuel tank

    L

    127

    Hydraulic oil tank


    118

    DIMENSIONS

    Upper structure width

    mm

    2140

    Cab width

    mm

    950

    Transportation length

    mm

    6450

    Machine height

    mm

    2775

    Overall height

    mm

    1600

    Ground clearance(Bob-weight)

    mm

    1030

    Tyre gauge

    mm

    Front1650 Rear 1610

    Wheel shaft diameter

    mm

    2400

    Mould board(width)

    mm

    2140

    Mould board(height)

    mm

    310

    Minimum ground clearance

    mm

    343

    OPERATING SCOPE

    Boom length

    mm

    3500

    Arm length

    mm

    1800

    Max. digging reach

    mm

    6545

    Max. digging depth

    mm

    3890

    Max. digging height

    mm

    6637

    Max. dumping height

    mm

    4865

    Min. swing radius

    mm

    2489

    Rear-end swing radius

    mm

    1989

    Min, turning radius

    mm

    7250

    Max. hade digging depth

    mm

    6360
