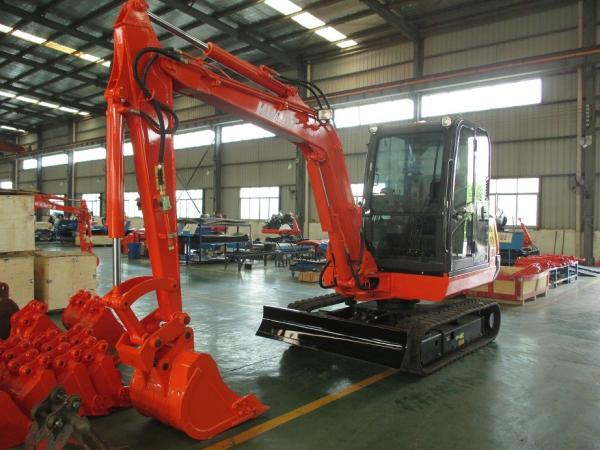

    Water Cooling 4 Ton Excavator with Mechanical Fuel Injection Pump Full Flow Fuel filter

    Ask Lasest Price
    Brand Name : Visbull
    Model Number : KD45
    Certification : Ghost/ISO/SGS/CE
    Price : negotiation
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 2000 units per month
    Delivery Time : 10 working days after received L/C or your deposit
    • Product Details
    • Company Profile

    Water Cooling 4 Ton Excavator with Mechanical Fuel Injection Pump Full Flow Fuel filter

    Water Cooling 4 Ton Excavator with Mechanical Fuel Injection Pump Full Flow Fuel filter


    Mini Hydraulic Excavator KD45 With Closed Cab , 30KW Diesel Engine , 4000 KG Operation Weight

    ModelXINCHAI A495BG / YANMER 4TNV88
    Cylinders4
    Bore/Stroke95×105mm
    Displacement2.977L
    Fuel injectiondirect
    Fuel injection pumpMechanical
    FuelDiesel
    Fuel filterFull flow
    Coolingwater-cooling
    Horswpower(net)30kw @2200rpm
    Maximum torque(net)165N.m @1650rpm
    BOOM/ARM
    Boom
    Swing75° left / 45° right
    Length2745mm
    Boom weight180kg
    Arm
    Length1600mm
    Arm weight80kg
    UNDERCARRIAGE
    Number of rollers
    Top,each track1
    Bottom,each track4
    Gradability58%(30°)
    HYDRAULICS
    Pumps(3)2×Variable displacement piston pump+gear pump
    Capacity- Maximum2×45L/min+36L/min
    System relief pressure-
    Standard24.5MPa+20.6MPa
    Pilot control hydraulic system-
    Pumps(1)Gear pump
    Maximum capacity10.7L/min
    Relief pressure3.5MPa
    Control valves-
    8 function multiple control valve
    Pump #1 for right travel and boom function and bucket function
    Pump #2 for left travel and arm function
    Pump #3 for house swing and dozer function and boom swing
    Pump #4 for pilot valve
    Swing-
    Motor(1)Fixed displacement axial piston design
    Speed0-12.5rpm
    BrakeSpring applied,hydraulically released with dual cushion relief
    Tail swing radius1630mm
    Travel-
    Motor(2)Two-speed axial piston design
    Final drivePlanetary gear reduction
    Travel speeds-Forward/Reverse
    Low2.5km/h
    High4.5km/h
    HYDRAULIC CYLINDERS
    Boom cylinder(1)
    Bore diameter90mm
    Rod diameter45mm
    Stroke535mm
    Arm cylinder(1)
    Bore diameter90mm
    Rod diameter45mm
    Stroke600mm
    Bucket cylinder(1)
    Bore diameter80mm
    Rod diameter45mm
    Stroke600mm
    ELECTRICAL
    Voltage12 volts
    Alternator40 amp
    Batteries(1) 12VHeavy-duty
    SERVICE CAPACITIES
    Hydraulic tank
    Refill capacity80L
    Total system100L
    Engine
    w/filter change6.5L
    Fuel70L
    Radiator6L
    OPERATING WEIGHT
    With 75kg operator4000kg
    Ground pressure33KPa

    A. Overall height2560mm
    B. Overall length5550mm
    C. Track overall width1628mm
    D. Track shoe width300mm
    E. Upperstructure ground clearance640mm
    F. Minimum ground clearance345mm
    G. Center to center(idler to sprocket)1750mm
    H. Track overall length2230mm
    I. Length of Chassis2500mm
    J. Backfill blade height325mm
    M. Tail swing radius1630mm
    Working weight4000kg
    Ground pressure33KPa

    A. Maximum dig radius5720mm
    B. Dig radius at groundline5595mm
    C. Maximum dig depth3650mm
    D. Dump height3585mm
    E. Overall reach height5080mm
    F. Bucket rotation175°
    G. Vertical straight wall dig depth3000mm
    H. Lift above groud165mm
    J. Drop below groud355mm
    K. Mini swing radius2245mm
    Arm digging force21KN
    Bucket digging force26KN
