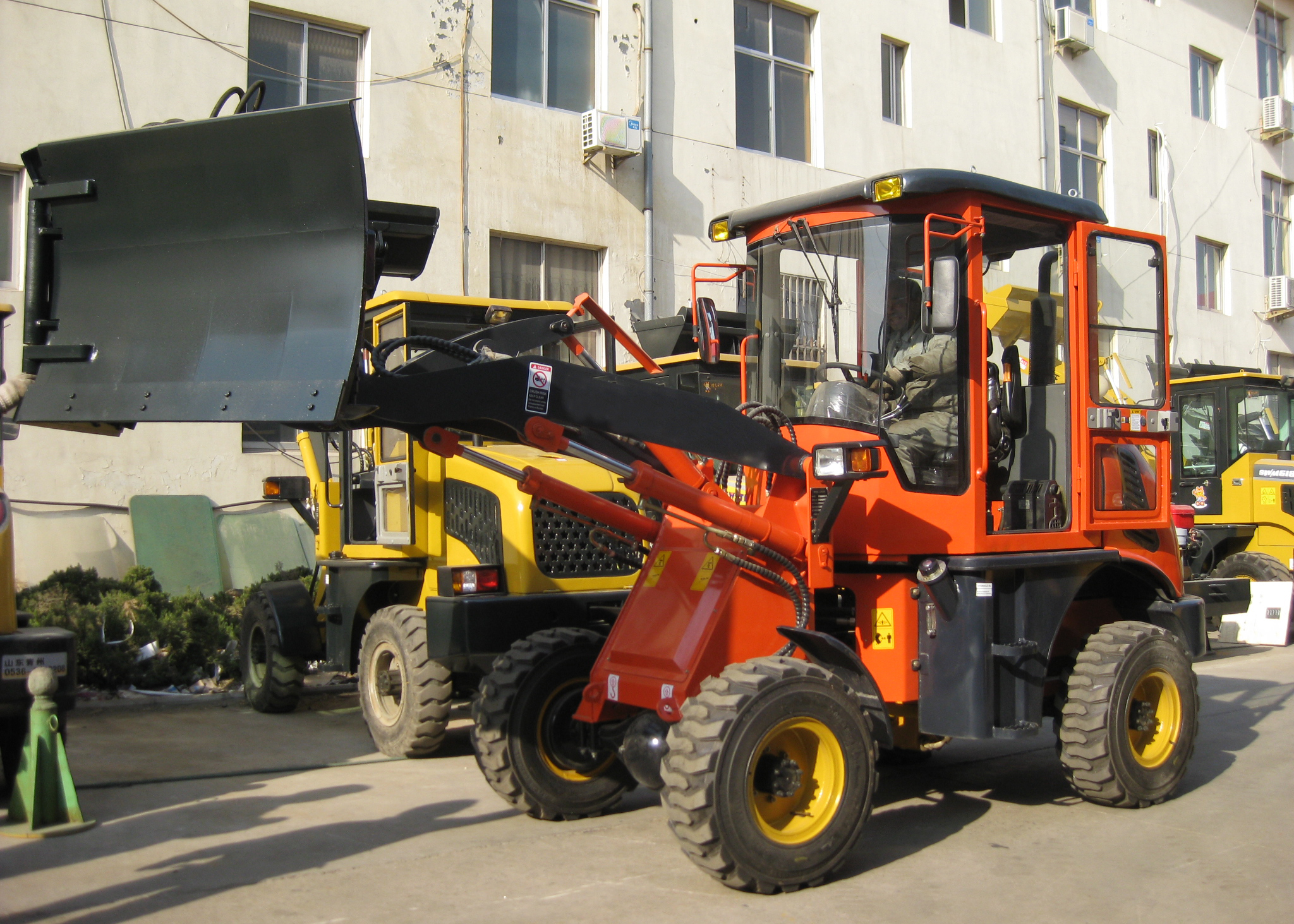

    Zl12F - E Euro III Engine articulated wheel loader machine 0.6m3 Bucket , 1.2t Rated Loading

    Ask Lasest Price
    Brand Name : Visbull
    Model Number : ZL12F-E
    Certification : CE/GHOST/ISO
    Price : negotiation
    Payment Terms : L/C at sight, T/T or western Union
    Supply Ability : 2,000 units per month
    Delivery Time : 10 working days after received L/C or your deposit
    • Product Details
    • Company Profile

    Zl12F - E Euro III Engine articulated wheel loader machine 0.6m3 Bucket , 1.2t Rated Loading


    Zl12F - E Euro III Engine articulated wheel loader machine 0.6m3 Bucket , 1.2t Rated Loading


    Main Feature


    1. Using direct injection diesel engine as power, with easy startup and low oil consumption
    2. Using special drive axle, with strong ability to overcome obstacle
    3. Chassis uses hinged structure, with small turning radius and flexible turning, which applies to the operation in narrow space
    4. This machine uses hydraulic operation, with simple structure, convenient operation, good performance and reliable quality
    5. Widely applying to the construction of agricultural engineering and small and medium building such as road, coal mine, brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.


    Main Specification:


    Rate load (kg)1200
    Bucket capacity (m3)0.7
    Wheel Track (mm)1400
    Wheel base (mm)2005
    Min. Turning radius (mm)4500
    Min. ground clearance (mm)260
    Dump clearance(mm)2600
    Dump Reach (mm)1020
    Lifting time of bucket (s)4
    Max. breakout force (kN)36
    Hydraulic cycle time (s)8.5
    Drive MeansFour wheel Drive
    Operating weight (kg)3600
    Overall dimensions (Length*width*height) (mm)4800*1770*2720
    Engine ModelXinChang A498BT1 engine
    Engine Rated power (kw)36.8
    Engine Rated output (rpm)2400
