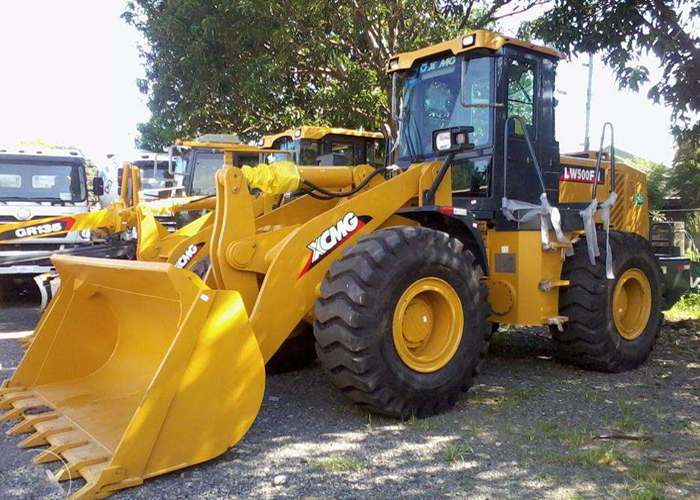

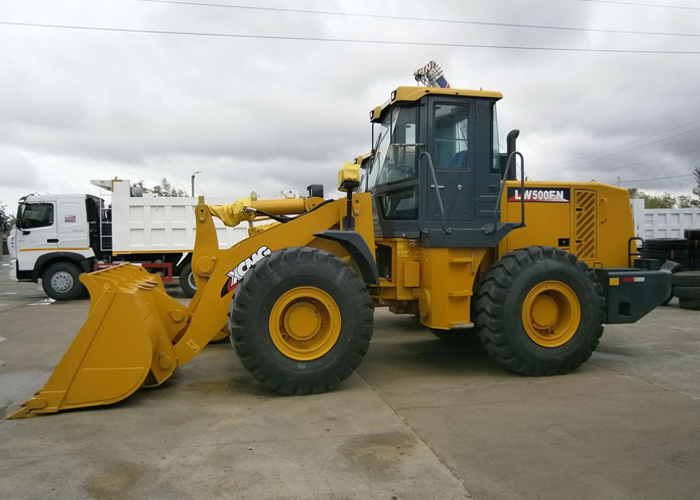

Large digging force compact front end loader LW500FN With Shanghai Diesel Engine
5t loading weight 3m3 Bucket XCMG Front End Wheel Loader LW500FN
With Shanghai Diesel Engine
Feature
LW500FN is XCMG popular wheel loader of high efficiency with more
than 10 years’ experience. The performance, efficiency, structural
strength, service life, daily maintenance and operation condition
are upgraded all round. With the two breakthroughs of driving
medium and covering part, the machine is ahead of other product of
the same kind essentially. The machine is especially adapted to the
working conditions of aggregate, earthmoving, coal. The shoveling
work efficiency ranks top in the industy.
Excellent performance
Large strength: the strong digging force of 15.8 ton and strong
traction of 15.6 ton ensure that the machine adapts to the various
tough condition.
Long dumping distance: super long dumping distance of 1274mm
guarantees enough operation space.
Excellent wheelbase: proper wheelbase of 2900mm, outstanding site
adaption and operation reliability.
Good ventilation: optimize the ventilation order of hydraulic oil
and cooling water. The water cooling of the transmission oil
settles issue of the high temperature which is common problem in
the industry.
High efficiency
Quick action: the total time of three devices is only 9.9s, leading
in the industry.
Fast speed: the machine speed is 11.5 km/hour during the operation,
featuring rapid shoveling.
Flexible steering: small turning radius; load sensing steering,
flexible and efficient.
Sufficient power: dual-pump combination; the machine utilizes the
power sufficiently, saves the energy, and features high efficiency.
High strength
Superstrong heavy load design; the front and rear frames adopt the
box type structure, featuring thick board and high strength.
The key structural parts adopt the finite-element analysis to
ensure that the machine could adapt to various kinds of dangerous
working condition.
Integrated casting support lug features strong carrying capacity.
Long service life
Key articulated positions are of two-stage dustproof, featuring
small abrasion and long service life.
Durable blade and bucket teeth feature longer service life.
The dismountable durable plate on the bottom of the bucket could
prolong the service life of the bucket.
The hydraulic pipeline adopts two-level sealing of 24° cone and O
ring, settling the common issue of leakage.
Comfortable operation
Equal to the luxury cab of the car, featuring large space and wide
visibility.
Adjustable luxury seat, elegant and comfortable.
Optional electric cabinet, guide control and air conditioner, MP3
and acoustics, more convenient operation, and more comfortable
driving.
Convenient maintenance
Optimized structure of the brake caliper, and the position moves
inside, more convenient for the maintenance.
Openable rotary oil tank features easy maintenance.
The hood adopts upturning side door, featuring large opening angle
and easy access.
The oil return of the hydraulic oil tank features the independent
chamber, ensuring convenience of the maintenance.
Strong adaptability
LW500F could operate with full load in mountainous region, muddy or
narrow area.
Outstanding shovelling capacity
LW500F features strong digging force and traction, and great
shovelling capacity. It can deal with stong, wet sand and mineral
powder freely.
Excellent full bucket coefficient
Long bucket bottom, sharp bucket type, strong cut-in force, much
material, power saving and high efficiency.
Excellent stacking capacity
Large digging force, strong gradeability, and meet the requirement
of each condition.
