    Mechanical Transfer Engineering Construction Bulldozer , 2 Lever Operation Dozer for Rent

    Ask Lasest Price
    Brand Name : Visbull
    Model Number : TS165-2
    Certification : Ghost/ISO
    Price : negotiation
    Payment Terms : L/C at sight, T/T or western Union
    Supply Ability : 500 units per month
    Delivery Time : 30 working days after received L/C or your deposit
    • Product Details
    • Company Profile

    Mechanical Transfer Engineering Construction Bulldozer , 2 Lever Operation Dozer for Rent

    Mechanical Transfer Engineering Construction Bulldozer , 2 Lever Operation Dozer for Rent

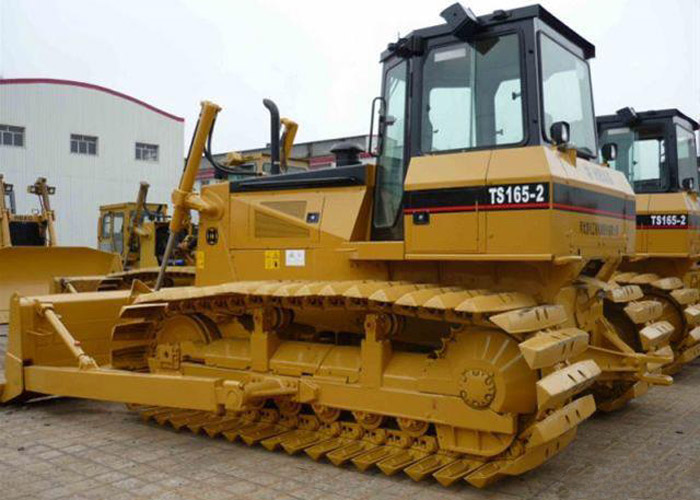

    165HP Power Crawler Bulldozer TS165-2 for Engineering Construction , 17800 KG Operating Weight

    Main Features:


    Semi-rigid suspended, mechanical transfer, hydraulic controlled track-type bulldozer. Oil booster control clutch, normally meshed helical gear drive, coupling sleeve shift and two lever operation, the transmission has five forward and four backward speeds. Single lever pilot hydraulic controls implement. Superior cabin is designed with streamline outlook and electric monitor. Been Popular among customers by its many merits such as productive efficiency,

    easy operated, low maintenance cost. T165-2 will be the ideal choice for transportation, desert working, oil field, electric power, mine project, etc. It is the updated product based on T165-1.

    Technical Specifications:

    Model

    Unit

    TS165-2

    Dozer

    /

    Tilt

    Operation weight

    Kg

    17800

    Ground pressure

    KPa

    28.3

    Track gauge

    mm

    2300

    Gradient

    °

    30/25

    Min. ground clearance

    mm

    352.5

    Dozing capacity

    4.5

    Blade width

    mm

    4222

    Max. digging depth

    mm

    400

    Overall dimensions

    mm

    5585×4222×3190


    Engine:

    Type

    /

    WD10G178E25

    Rated revolution

    rpm

    1850

    Flywheel power

    KW/HP

    121/165

    Max. torque

    N•m/rpm

    830/1100

    Rated fuel consumption

    g/KW•h

    ≤218


    Gear

    Gear

    Unit

    1st

    2nd

    3rd

    4th

    5th

    Forward

    Km/h

    2.702

    3.558

    6.087

    8.076

    11.261

    Backward

    Km/h

    3.778

    4.974

    8.511

    11.28


    Implement hydraulic system

    Max. system pressure

    MPa

    12

    Pump type

    Two groups Gears pump

    System output

    L/min

    190


    Driving system

    Main clutch

    Normally opened, wet type, hydraulic booster control.

    Transmission

    Normally meshed helical gear drive, coupling sleeve shift and two lever operation, the transmission has five forward and four backward speeds.

    Steering clutch

    Multiple-disc oil power metallurgy disc compressed by spring. Hydraulic operated.

    Braking clutch

    Brake is oil two direction floating band brake operated by mechanical foot pedal.

    Final drive

    The final drive is double reduction with spur gear and segment sprocket, which are sealed by duo-cone seal.
