Komatsu 180 Horsepower Sealed Crawler Tractor Dozer for Earthwork /
Road Construction
180HP Power Middle Crawler Bulldozer T160 for Engineering
Construction , Mining project
Feature:
1. Use Euro II engine ,with such advantages as low oil consumption
,little smoke ,big torque reserve
coefficient and high attractive force of the whole unit.
2. The main clutch which is adopted has been used in the komatsu 180
horsepower bulldozer ,with
such advantages as big torque reserve coefficient and long life.
3. The reducing throttle is equipped .when the bulldozer is traveling in
the downhill grade or bumpy
ground ,the speed can be well controlled to strength the safety of
operation.

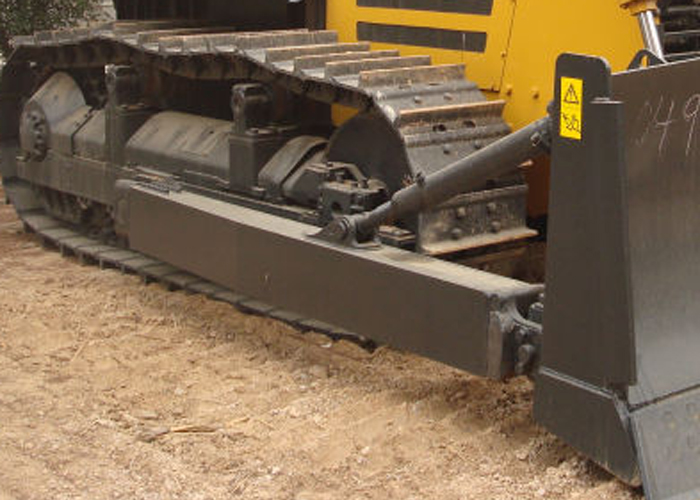

4. Sealed track shall be adopted .Seal ring is provide at both ends of the pin sleeve of the sealed track
to prevent entry of silt and other grinding materials.
5. The joystick is adopted in the control device ,which is light and flexible.
Specification:
| Model | | T160 |
| Total Weight | kg | 17500 |
| Max Towing Force | kN | 146 |
| forward Ⅰ-Ⅴ Gears | km/h | 2.59～10.8 |
| Reverse Ⅰ-Ⅳ Gears | km/h | 3.6～10.8 |
| Minimum Turning Radius | mm | 3900 |
| Track Width | mm | 500 |
| Land Pressure | kPa | 68 |
| Overall Dimension(L×W×H) | mm | 5245×3447×3040 |
| Bulldozer Shovel(W×H) | mm | 3447×1167 |
| Max Lifting Height Of Bulldozer | mm | 915 |
| Max in-soil Depth of Bulldozer Shovel | mm | 400 |
| Towing Equipment/Scarifier(optional) | | Three shanks |
| track gauge | mm | 1880 |
| wheelbase | mm | 2570 |
| ground clearance | mm | 400 |
| Engine Model | | SC8D180.2G2B1 |
| Engine Rated Power | kw | 132 |
| Engine Rated Speed | r/min | 2000 |
| type | | Water cooled, |
| cylinder number diameter×piston stroke | mm | 6-105×125 |
| rate fuel consumption | g/kw.h | ≤228 |
| max torque | n.m | 759 |
| transmission system | | |
| main clutch | | Wet type, hydraulic control |
| center transmission | | spiral bevel gear pair |
| turning clutch | | Wet type |
| final clutch | | Two-stage transmission mesh |
| chassis and running system | | |
| chassis type | | steel plate welding |
| suspension fork | | semi-rigid |
| guiding wheel and tension devices | | Hydraulic tensioning, column spring cushion |
| track | | rolled section steel |
| control system | | |
| oil supply control | | handle |
| main clutch control | | Stick handle |
| turning clutch | | Hemi-handle |
| hand brake | | pedal mechanical |
| multi-vavle | | joystick |
| working devices | | |
| scarifier | | |
| type | | Three shanks |
| lifting height | mm | 510 |
| digging depth | mm | 550 |
| quantity of tooth | | 3 |
| blade | | |
| type | | Straight blade |
| width and height | mm | 3447×1167 |
| lifting height | mm | 915 |
| digging depth | mm | 400 |
| cutting angle | ° | 55 |
| lifting speed | m/s | 0.3 |
| main filling quantities | | |
| diesel tank | L | 230 |
| hydraulic oil tank | L | 85 |
| diesel engine lubricating system | L | 24 |
| gearbox and rear axle | L | 110 |
| final drive device | L | 40×2 |
| track carrier roller | L | 0.36 |
| track bogie wheel | L | 3 |
| track guiding wheel | L | 3 |
| water tank | L | 65 |
