    Hydraulic Compact Front Loader Construction Equipment , Stamping Steel Structure Track Loader Rental

    Ask Lasest Price
    Brand Name : Visbull
    Model Number : LW300FN
    Certification : CE, Ghost, ISO
    Price : Negotiation
    Payment Terms : Western Union, MoneyGram, L/C, T/T
    Supply Ability : 1000 units per month
    • Product Details
    • Company Profile

    Hydraulic Compact Front Loader Construction Equipment , Stamping Steel Structure Track Loader Rental

    Hydraulic Compact Wheel Loader , Stamping Steel Structure Track Loader Rental


    3 ton 1.5m3 /1.8m3 bucket capacity XCMG wheel loader LW300FN, 92kw diesel engine

    Description:

    LW300FN wheel loader is xugong in view of the market for loader improvement of comfort and style, user on the improvement of loader reliability, the use of performance requirements, and on the basis of LW300F development of a new model.Major improvements include: hydraulic system comprehensive upgrade, lifting ability is greatly increased, the frame strength enhancement, shovel bucket type improvement, new bridge structure, inner decoration luxurious, covering parts stamping steel structure, electrophoresis paint technology, a new painting style


    1, the power system

    The yuchai YC6B125 - T21 engine, extra power is 92 kw, environmental protection and energy saving, powerful, meet the Ⅱ stage emission standards.At the same time increase the tank heat dissipation area, to overcome the problem of high oil temperature, beneficial to the improvement of the components and system reliability.Pressure measuring device, temperature measuring device adopts electronic sensing system, the user of the repair and maintenance more convenient.


    2, the transmission system

    Driving part adopts fixed axis type power shift gearbox with single-stage single-phase three components of hydraulic torque converter connected to a forward 4 back 2 block of many gears, can meet the speed requirement of different working conditions.The fixing shaft transmission with high reliability, long service life, high transmission efficiency, simple structure, convenient manufacture and maintenance, shifting light, combined with balance, etc.Torque converter in addition to meet the requirements of the structure of the torque, with three power interface, can drive at the same time three attachments (such as work pump and steering pump) work together to improve the dynamic performance of the machine, smooth transmission.The maximum traction of 90 kn


    Parameter:

    ItemParameterUnit
    Rated load3t
    Bucket capacity1.8m3
    Dumping height2892mm
    Dumping distance1104mm
    Max. drawing force>120kN
    Max. traction>90kN
    Dimension (Length * Width * Height )6905*2470*3028mm
    Operating weight10t
    Boom lifting time5.65s
    Total time of three devices10.3s
    Wheelbase2600mm
    Min. turning radius (bucket outer)5925mm
    Rated power92kw
    Travel speed I Gear (Forward/Backward)0~10/14km/h
    II Gear (Forward/Backward)0~16/25km/h
    III Gear (Forward)0~21km/h
    IV Gear (Forward)0~35km/h
    Boom Parameter
    Bucket capacity1.5/1.8m3
    Rated load2.6/2.6t
    Dimension (Length * Width * Height)7127*2470*3028,7226*2470*3028mm
    Dumping height3253/3200mm
    Dumping distance1051/1142mm
    Operating weight10.2/10.2t
    Attachment parameter-grasping grass
    Dumping height2948mm
    Dumping distance2036mm
    Clamp body width2200mm
    Max. opening2800mm
    Attachment parameter-clamp(III)
    Dumping height2551mm
    Dumping distance837mm
    Min. circle diameter590mm
    Max. opening1700mm
    Attachment parameter-side dump
    Bucket width2650mm
    Dimension7.25*2650*3028mm
    Dumping height(straight/side) dumping2725/3524mm
    Dumping distance(straight/side) dumping1109/175mm
    Lifting height(straight/side) dumping4980/5928mm
    Attachment parameter-Sliding fork
    Fork folding angle17.2'
    Attachment length1575mm
    Attachment width1980mm
    Attachment height1200mm
    Fork teeth length1050mm

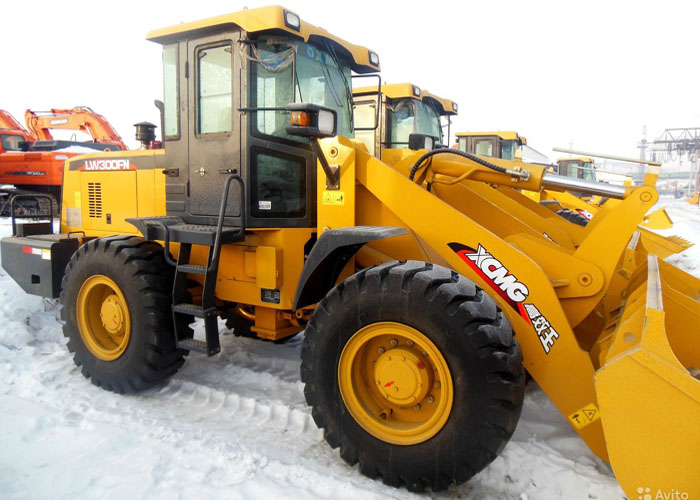

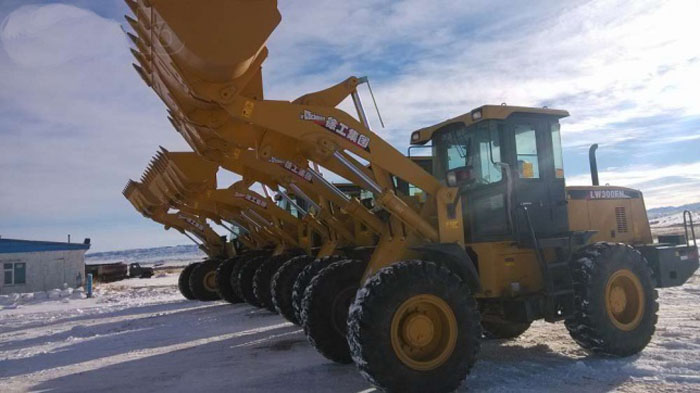

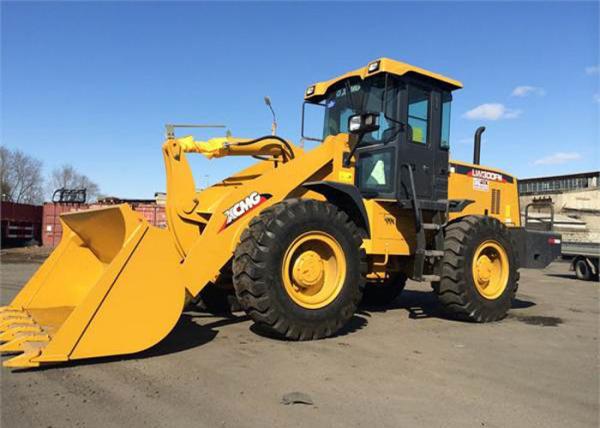

    Pictures:
