Brand Name : | Visbull |
Model Number : | CPQYD25 |
Certification : | ISO / CE |
Price : | negotiation |
Payment Terms : | L/C at sight, T/T or western Union |
Supply Ability : | 1500 units per month |
Delivery Time : | 15 working days after received L/C or your deposit |

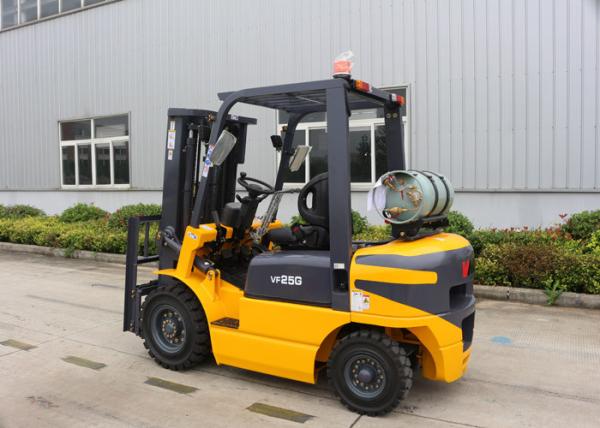

Hydraulic Transmission LPG Industrial Forklift Truck Low Noise Gasoline Power Type
2.5Ton LPG Forklift Petrol Forklift Gasoline Forklift With Complete
USA IMPCO LPG System
Description:
About LPG forklift trucks: Visbull brand LPG forklift is available with a loading capacity ranging from 2 tons to 4 tons. Visbull LPG forklift utilizes world famous engine GM to provide moderate power, high reliability, low fuel consumption and low noise. These types sale well in America area and operate well in many applications.
Advantage of gas forklift: An innovative operator compartment design offers easy driver
access, excellent all-round visibility and conveniently located
controls. These LPG forklifts adopt Germany technology, which
greatly enhances the reliability and meets the Europe Standard.
Main Features:
1. Dual air filter
2. Up exhaust
3. Comfortable fluorescent panel
4. Hydraulic transmission
Specifications:
Model | Unit | CPQYD25 | |
Power type |
| Gasoline | |
Rated capacity | kg | 2500 | |
Load center | mm | 500 | |
Mast Lifting height | mm | 3000 | |
Free lift height | mm | 240 | |
Fork size(L*W*T) | mm | 1070×125×45 | |
Tilting Angles(Front/Rear) | deg | 6°/12° | |
Front overhang | mm | 485 | |
Exterior Size | Length without fork | mm | 2580 |
Overall width | mm | 1160 | |
Mast drop | mm | 1995 | |
Max. lift | mm | 4030 | |
Front-wheel Overhead | mm | 2070 | |
Min Turning Radius | mm | 2230 | |
Min. intersecting aisle | mm | 2000 | |
| Max Driving speeds | km/h | 17.5/20 |
Lifting speeds | mm/s | 500/530 | |
Lowering speeds | mm/s | 540/550 | |
Max. grade ability | % | 18 | |
Total weight | kg | 3600 | |
Tires | Front |
| 7.00-12-12PR |
Rear |
| 6.00-9-10PR | |
Wheelbase | mm | 1600 | |
| Front | mm | 970 |
Rear | mm | 970 | |
Min. ground clearance | mm | 110 | |
Engine | Model |
| Chinese BY491 Gasoline engine |
Rated output | kw/rpm | 37/2650 | |
Rated torque | N.m/rpm | 148/1800 | |
No. of cylinder |
| 4 | |
Displacement | L | 2.54 | |
Fuel tank capacity | L | 52 |
![]() |
