Brand Name : | Visbull |
Model Number : | CPQYD25 |
Certification : | ISO / CE |
Price : | negotiation |
Payment Terms : | L/C at sight, T/T or western Union |
Supply Ability : | 1500 units per month |
Delivery Time : | 15 working days after received L/C or your deposit |

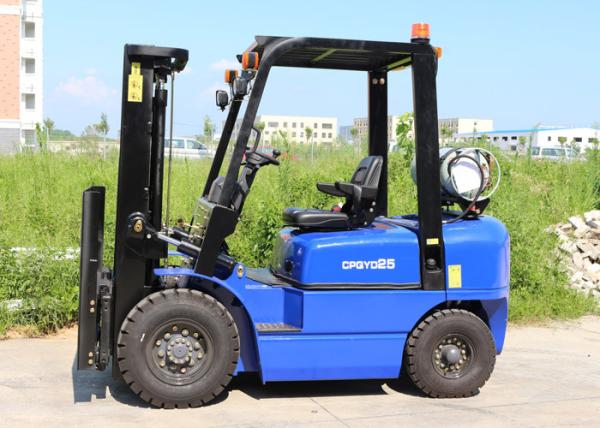

Nissan Engine LPG Gasoline Propane Powered Forklift for 2.5 Ton Material Handling
2.5Ton Material Handling Equipment LPG Gasoline Forklift With
Nissan Engine Imported From Japan
Description:
Load capacity: 2500 kg
Side-put lifting cylinder and chains offer wide-view visibility
The composite wheel is easy for maintain and adjustment.
The steering system is agile and convenient, the buffer device
reduce the vehicle vibration.

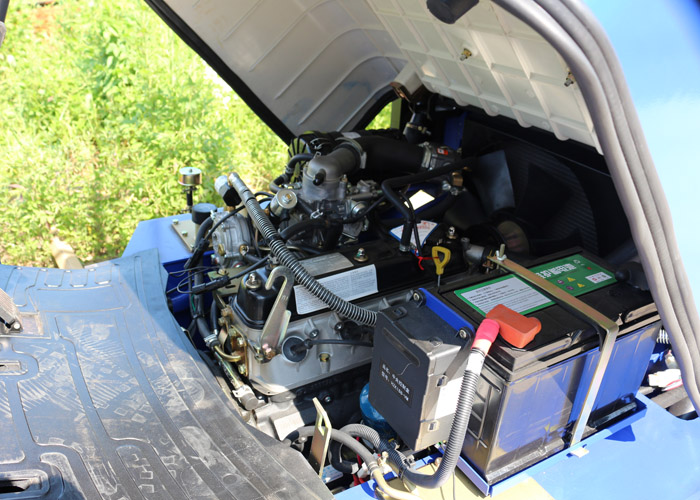

The engine has good performance: It has virtues in operation in
stability, low noise, low vibration and low fuel consumption
Japanese Nissan K21engine
Main Features:
1. Dual air filter
2. Up exhaust
3. Comfortable fluorescent panel
4. Hydraulic transmission
Specifications:
Model | Unit | CPQYD25 | |
Power type |
| Gasoline | |
Rated capacity | kg | 2500 | |
Load center | mm | 500 | |
Mast Lifting height | mm | 3000 | |
Free lift height | mm | 240 | |
Fork size(L*W*T) | mm | 1070×125×45 | |
Tilting Angles(Front/Rear) | deg | 6°/12° | |
Front overhang | mm | 485 | |
Exterior Size | Length without fork | mm | 2580 |
Overall width | mm | 1160 | |
Mast drop | mm | 1995 | |
Max. lift | mm | 4030 | |
Front-wheel Overhead | mm | 2070 | |
Min Turning Radius | mm | 2230 | |
Min. intersecting aisle | mm | 2000 | |
| Max Driving speeds | km/h | 17.5/20 |
Lifting speeds | mm/s | 500/530 | |
Lowering speeds | mm/s | 540/550 | |
Max. grade ability | % | 18 | |
Total weight | kg | 3600 | |
Tires | Front |
| 7.00-12-12PR |
Rear |
| 6.00-9-10PR | |
Wheelbase | mm | 1600 | |
| Front | mm | 970 |
Rear | mm | 970 | |
Min. ground clearance | mm | 110 | |
Engine | Model |
| Chinese BY491 Gasoline engine |
Rated output | kw/rpm | 37/2650 | |
Rated torque | N.m/rpm | 148/1800 | |
No. of cylinder |
| 4 | |
Displacement | L | 2.54 | |
Fuel tank capacity | L | 52 |
![]() |
