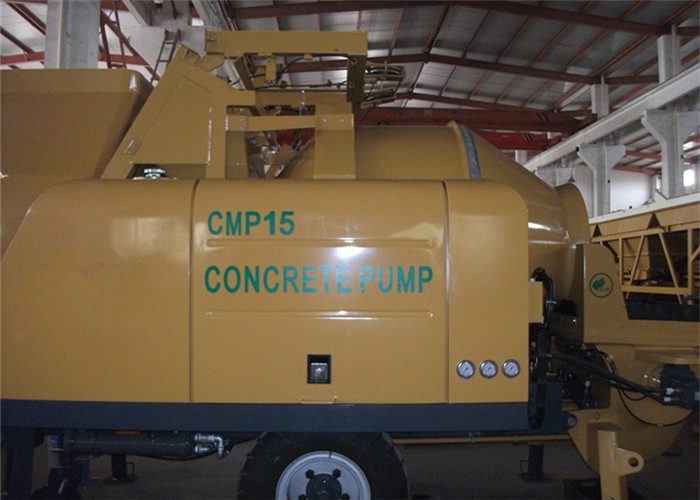

350L 15CBM Per Hour Truck Mixer Concrete Pump For Engineering Construction CPM15

15CBM Per Hour Tralier Mounted Concrete Mixing Pump CPM15 With 350L Electric Concrete Mixer For Concrete Pumping Works

15M3 / H Mobile Concrete Mixing Pump CPM15 With 350L Concretr Mixer

Specifications:

Description

CPM15 Concrete Pump and Mixer mixing conveyer has agitation and the transportation functions. The agitation system adopts self-fall type bi-pyramid

to reverse discharging mechanism; The hydraulic system uses double cylinder

piston type, the electrical and hydraulic control, the S valve assignment form.

Main parts:

1.The main engine is composed by the hydraulic system, the electric system, the

pump system, the mixing mechanism, the distributing valve, the running gear, the

cowling, the rack, the transfer pipeline and so on.

2.The hydraulic system is composed by the main oil route system, the distributing

valve oil system, the mixing oil system.

3.Main main oil route system including oil filter, ram pump, Electromagnetism

distributing valve, electromagnetism overflow valve, check valve, main oil cylinder

as well as pipeline appendix.

4.The distributing valve oil system including oil filter, Electromagnetism distributing

valve, oil cylinder as well as pipeline appendix and so on.

5.The electric system including the electromotor, AC contact device, air switch,

push-button switch.

Advantages

This equipment has the system to be stable, the control system is simple, the control

is convenient, few maintenance, motion convenience and so on

Features

1. It may use to the high-rise construction or the remote transfer mortar, the foaming

concretes as well as the small aggregate concretes, facilitates the construction work.It

has the transportation, the efficiency high, to disturb slightly mutually continuouslywith

other equipment, it may transport the mortar to the other equipment out of reachplace.

Mortar flows in the pipeline, it will not cause merits environmental pollution

and so on.
2. It through increased the compressed air injection gear to constitute a complete

wet concretes jet aircraft, it might use in the mine pit and the understructure work supports and protections lining work. The construction wall surface spray coating,

the construction structure reinforcement, the ground side slope stability, projects

tunnel excavation and so on. It has the work efficiency to be high, the concretes

quality is good, the dust loading is low, the snapping back rate is low, the failure

rate is low, and the building cost of projects is low.

1. Agitation system

(1)It uses self-falls bi-pyramid and reverse discharge mechanism, the production

efficiency is high, the agitation quality is good;

(2)Stirs drum uses the gear transmission, the transmission efficiency is high, the

failure rate is low, and maintains is simply.

2. Hydraulic system

(1)The operating valve uses the advanced S valve, the leak-proof quality is good,

structure is simple and reliable. The eyeglasses board and the wear resisting link

use the hard alloy, the resistance to wear are good, the life is long, the replacement

is convenient, the wear-resisting link uses may the automatic compensation gap

organization;

(2)The control mode uses electricity - hydraulic control, the operation is simple, the

revolution is steady, the noise is low; It has the consummation electricity - fluid over-load

protection and the measuring appliance display system; it has the reverse-pump

operation function; It is safely reliable, easy to fix the jamming breakdown; Services conveniently;

(3)Contact device and push-button switch electric appliance modules and so on,

the protection rank may achieve IP65, the control wiring is simple, operation reliable;

(4)It is suitability to many kinds of mortar, like spraying mortar, wall surface mortar,

ground mortar, small aggregate concretes and so on.
