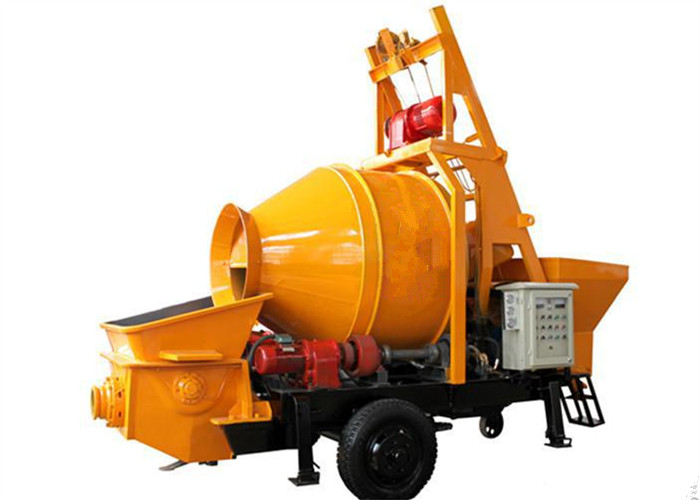

30m3 / H Mobile Concrete Mixer With Pump And 600 L Hopper Capacity
Mixing concrete pump is the newest products patented by our
company, it is combined by the traditional concrete pump and the
mixer together, it is the most suitable for use in four to six
floor buildings, especially in the group buildings, bridges, and
the spread of small construction sites where need the concrete
mixer at the scene.
The greatest advantage of the mixing concrete pump is to up
efficiency; it is six times the efficiency of mixing concrete pump
than traditional mixing and concrete pump, it is well known;
concreting process is an interval cycle of course.
Concrete pump with mixing tank used for smaller type building. 2 in
1 mixing and pump, can rift engineer efficiency. Concrete pump with
mixing tank --------- the new assistant in a small building.
Performance characteristics
1. With the concrete mixer pump two machines combined into a
machine to move easily, strong, flexible maneuverability.
2. Concrete mixer and pump drive by a worker to make staff and save
manual.
3. In order to the replacement of the concrete pistons, the join
unit is scalable path between concrete mixer and pump.
4. Diesel or motor puts in a room, scalable activities and reduce
the transport link of the horizontal dimensions.
5. The open hydraulic circuit, the system hydraulic pressure is
lower, without easily damaged elements such as accumulator.
6. The hopper with a curved, the design of the transition, into
rate is high with inhaling efficient.
7. Relays type integration electric system, simple and reliable.
8. Welding the wear plate and wear ring, but the restoration and
use low cost.
9. Independence of the water cooling system, efficient.
10. Manual lubricating systems, reliable.
11. The diesel power is applicable to engineering comprehensive.
12. Mixer between rollers and friction pulley by the transmission,
reliable not skid.
Specifications:
| Item | Unit | Parameter |
| Pumping system | Max. theoretical delivery volume | m³/h | 30 |
| Max. theoretical delivery pressure | MPa | 13 |
| Max. theoretical mixing output | m³/h | 15 |
| Distribution valve type | | S tube valve |
| Concrete cylinder specification | mm | Φ200×1000 |
| Hopper capacity | L | 600 |
| Output opening diameter | mm | 150 |
| Hoisting height | mm | 1070 |
| Power system | Main pump electric motor power | KW | 37 |
| Rated voltage | V(AC) | 380/50(Hz) |
| Rated rotation speed | r/min | 1480 |
| Hoist motor power | Kw | 4.5 |
| Mixer motor power | Kw | 4*2 |
| Vibrator motor power | Kw | 0.55 |
| Hydraulic system | Type of Hydraulic oil circuit | | Open oil circuit |
| Main oil pump | | Japanese Kawasaki |
| Maximum oil pressure of pumping system | MPa | 26 |
| Maximum oil pressure of mixing system | | 14 |
| Highest mixing speed | r/min | 23 |
| Hydraulic oil tank capacity | L | 400 |
| Allowable max. dia.of aggregate | mm | Pebble 40, crushed stone 30 |
| Inner dia.of concrete delivery pipe | mm | Φ125/Φ150 |
| Theoretical Max. delivery distance | horizontal | 350m |
| vertical | 140m |
| Dimension(length× width× height) | In transit | mm | 5112×2091×3514 |
| Weight | kg | 4800 |
