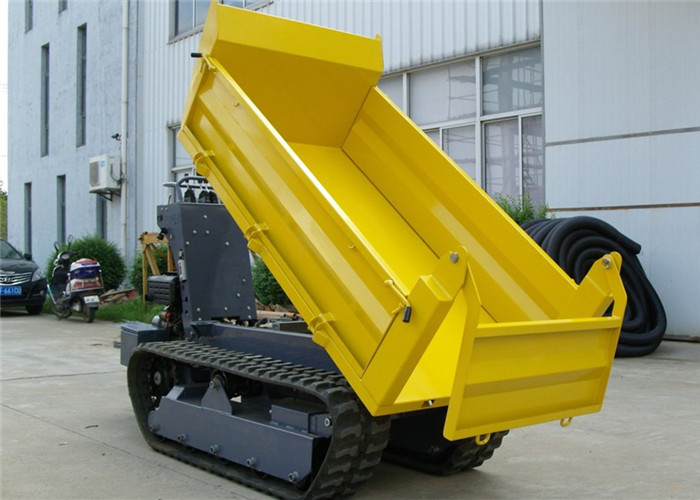

    1 tons Crawler Mini Tracked Dumper With Hydraulic Pump Stepless Speed Changes

    Ask Lasest Price
    Brand Name : Visbull
    Model Number : KD1000M
    Certification : CE/SGS/ISO
    Price : US$6500-US$7000 per unit
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1,000pcs per month
    Delivery Time : 25-30 working days after received your advance payment
    • Product Details
    • Company Profile

    1 tons Crawler Mini Tracked Dumper With Hydraulic Pump Stepless Speed Changes

    1 tons Crawler Mini Tracked Dumper With Hydraulic Pump Stepless Speed Changes


    1tons Gasoline Engine Mini Dumper With

    Self - Loading Shovel And Hydraulic Transmission


    Specifications:


    Specification

    KD1000M

    Tracked power barrow

    Engine

    Briggs&Stratton 13HP or HONDA GX390 13HP or

    CHINA Diesel Engine

    Weight:

    800kg

    Transmission system

    Hydraulic system

    Type: Hydrostatic

    Hydraulic Pump: Piston Pump

    Hydraulic Motors: 2x orbital

    Max Pressure: 150bar(2180psi)

    Brake Parking: Mechanical

    Main Valve: 2-3way


    Cooler system oil: air


    Skip Tipping System: Hydraulic

    Loading Capacity

    1000kg

    Standard Track Width

    180mm(7.1in)

    Track roller

    3

    Rockling rollers and track tensioning

    Yes

    Max Travel Speed

    5.0 km/h

    Dimension

    180*83*117(retort stand)

    SELF LOADING SHOVEL

    Yes

    HI-TIP

    NO

    Loading Capacity

    20GP

    6

    40HP

    13


    Competitive Advantage:

    1 . Easy and comfortable operation due to the intuitive controls.
    2 . Hydraustatic dumping from three sides, easily changed by screw pins
    3 . Easy climing and stable crossing the obstacles.
    4 . Spot turning, mini slipping.


    Description:

    1. The max loading weight is 1000kgs .

    2. With B&S 13HP or HONDA GX390 13HP or Diesel Engine

    3. Hydraulic Transmission case

    4 . Efficiency of transportation by transportation, loading, unloading and dumping ability.

    5. Hydraulic Pump Stepless Speed Changes


    Applications:

    Dumpers are widely used in many different of site works, such as Building construction industry,

    landscaping,gardening,farming,stables renting and so on.
