1500L Skip Capacity Hydraulic Tipping Hopper Concrete Dumper with
Diesel Engine
3tons 4WD Diesel Mini Concrete Dumper With 1500L Skip Capacity And
Hydraulic Tipping Hopper For Site Works

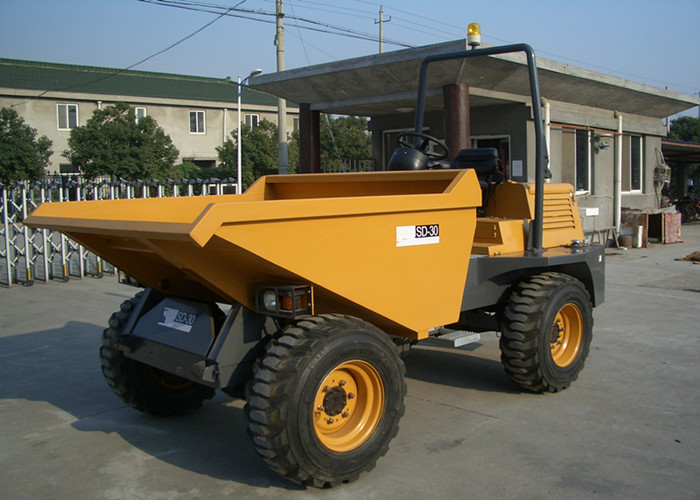

3tons 4WD Mini Dumper With Hydraulic Tipping Hopper
Specifications:
Model | SD-30 |
|---|
Drive Model | 4WD |
|---|
Length(mm) | 3900 |
|---|
Width(mm) | 1794 |
|---|
Height(mm) | 1820 |
|---|
Wheel Base | Wheel Base(mm) | 2000 |
|---|
Wheel Tread | Front Wheel(mm) | 1470 |
|---|
Rear Wheel(mm) | 1470 |
|---|
Min Ground Clearance(mm) | ≥248 |
|---|
Dry Mass(Kg) | 3000 |
|---|
Engine | Model | NB485/F3L912 |
|---|
Type | Xinchang 485 Water-4 Deutz F3L912 Air-3 |
|---|
12 Hours Rated Power(rpm) | 30KW/2600(485)
36KW/2300(912) |
|---|
Tyres | Front Wheel | 12-16.5 |
|---|
Rear Wheel | 12-16.5 |
|---|
Clutch | Constant-contact, single-disc, dry clutch |
|---|
Brake | Drum type with hydraulic control |
|---|
Steering Gear | Hydraulic follow-up Service |
|---|
Gear Box With | Four forward speeds and one reversed speed |
|---|
Ground Speed (Km/H) | 1st Gear | 4.26 |
|---|
2nd Gear | 8.8 |
|---|
3rd Gear | 16.14 |
|---|
4th Gear | 27.2 |
|---|
Reverse | 3.48 |
|---|
Skip Capacity (m3) | 1.5 |
|---|
Minimum Turning Radius (m) | 4.225 |
|---|
Tipping System | Hydraulic Tipping hopper |
|---|
Max, Grade Ability (%) | 36 |
|---|
Electric Starting | Yes |
|---|
|
|---|
Container Loading |
|---|
20GP container can be loaded with | 1Unit |
|---|
40GP container can be loaded with | 3Units |
|---|
Description:
1 . Wheel type mini dumper
2 . With power steering and powerful 36KW engine, it's easier to
move at slope or rugged area.
3 . with transmission for car, it's possible to change speed during
travel.
4 . Efficiency of transportation by transportation, loading,
unloading and dumping ability.
5 . 4*4 driving articular frame with hydraulic steering
6 . Beinei Diesel Engine By DeutZ Tech., F3L912,50HP,air cooling
type.
Applications:
Dumpers are widely used in many different of site works , such as
the construction industry, the factory floor , battlefield ,
protecting road section , the municipal engineering , underground
mines and so on .
Competitive Advantage:
1 . As a low volume, short distance transport of bulk materials for
small site dumpers, because of its easy operation, small
turning radius can be used in a narrow environment, etc,.
2 . Full Cover of Diesel Engine
3 . Strong and Heavy Duty Frame and Chassis
4 . Bucket can be full automatically tipped by hydraulic cylinder
5 . Direction change of dumper can be easily controlled by
hydraulic steering wheel
