Hydrostatic Type Motorized Wheelbarrows with 150bar Max Pressure 2x
Orbital Hydraulic Motor

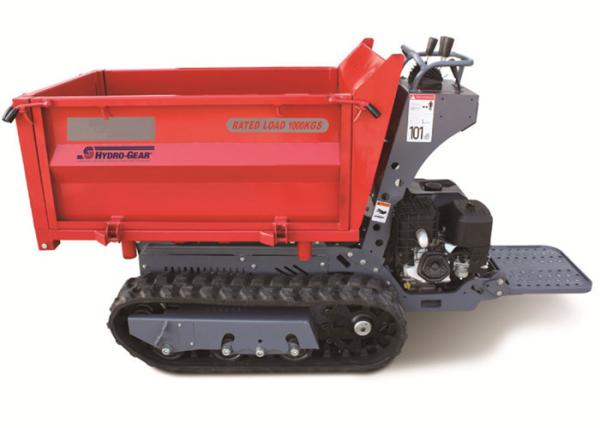

1tons Gasoline Engine Mini Dumper With Self - Loading Shovel And
Hydraulic Transmission For Site Works
1tons Gasoline Engine Mini Dumper With
Self - Loading Shovel And Hydraulic Transmission
Specifications:
Specification |
KD1000 | Tracked power barrow |
Engine | Briggs&Stratton 13HP or HONDA GX390 13HP or CHINA Diesel Engine |
Weight: | 600kg |
Transmission system | Hydraulic system |
Type: Hydrostatic | Hydraulic Pump: Piston Pump |
Hydraulic Motors: 2x orbital | Max Pressure: 150bar(2180psi) |
Brake Parking: Mechanical | Main Valve: 2-3way |
| Cooler system oil: air |
| Skip Tipping System: Hydraulic |
Loading Capacity | 1000kg |
Standard Track Width | 180mm(7.1in) |
Track roller | 3 |
Rockling rollers and track tensioning | Yes |
Max Travel Speed | 5.0 km/h |

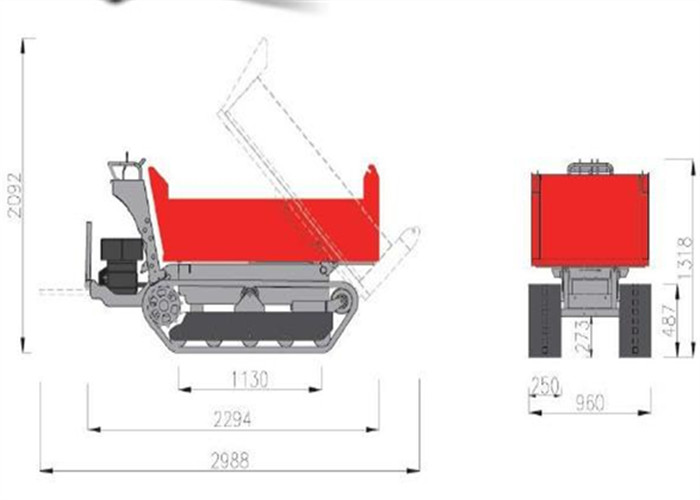

Dimension | 180*83*117(retort stand) |
SELF LOADING SHOVEL | Yes |
HI-TIP | No |
Loading Capacity | 20GP | 6 |
| 40HQ | 22 |
Competitive Advantage:
1 . Easy and comfortable operation due to the intuitive controls.
2 . Self loading shovel not only can be used as a small excavator
but also keep the balance of the machine during unloading.
3 . Easy climbing and stable crossing the obstacles.
4 . Spot turning, mini slipping.
Description:
1. The max loading weight is 1000kgs .
2. With B&S 13HP or HONDA GX390 13HP or Diesel Engine
3. Hydraulic Transmission case
4 . Efficiency of transportation by transportation, loading,
unloading and dumping ability.
5. Self-Loading Shovel.
Applications:
Dumpers are widely used in many different of site works, such as
Building construction industry,
landscaping,gardening,farming,stables renting and so on.
