Brand Name : | Visbull |
Model Number : | CPQYD35 |
Certification : | ISO / CE |
Price : | negotiation |
Payment Terms : | L/C at sight, T/T or western Union |
Supply Ability : | 1500 units per month |
Delivery Time : | 15 working days after received L/C or your deposit |
Visbull Brand LPG Industrial Forklift Truck With Triplex Mast And
Side Shifter
Main Features:
Description:
About LPG forklift trucks: Visbull brand LPG forklift is available with a loading capacity
ranging from 2 tons to 4 tons. Visbull LPG forklift utilizes world
famous engine GM to provide moderate power, high reliability, low
fuel consumption and low noise. These types sale well in America
area and operate well in many applications.

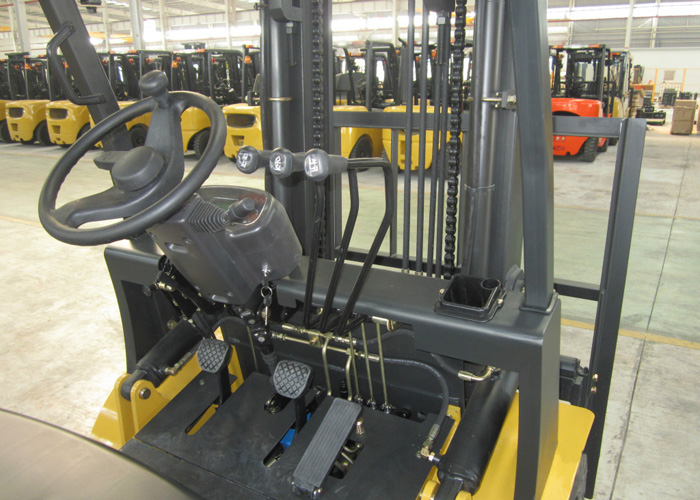

Advantage of gas forklift: An innovative operator compartment design offers easy driver
access, excellent all-round visibility and conveniently located
controls. These LPG forklifts adopt Germany technology, which
greatly enhances the reliability and meets the Europe Standard.
Specifications:
Model | Unit | CPQYD35 | |
Power type | Gasoline/LPG | ||
Rated capacity | kg | 3500 | |
Load center | mm | 500 | |
Max Lifting height | mm | 3000 | |
Free lift height | mm | 160 | |
Fork size(L*W*T) | mm | 1070×125×45 | |
Tilting Angles(Front/Rear) | deg | 6°/12° | |
Front overhang | mm | 479 | |
Exterior Size | Length without fork | mm | 2682 |
Overall width | mm | 1225 | |
Mast drop | mm | 2065 | |
Max. lift | mm | 4262 | |
Front-wheel Overhead | mm | 2090 | |
Min Turning Radius | mm | 2400 | |
Min. intersecting aisle | mm | 2380 | |
Speeds | Max Driving speeds | km/h | 18/19 |
Lifting speeds | mm/s | 440/480 | |
Lowering speeds | mm/s | 450/500 | |
Max. grade ability | % | 20 | |
Total weight | kg | 4270 | |
Tires | Front | 28×9-15-12PR | |
Rear | 6.50-10-10PR | ||
Wheelbase | mm | 1700 | |
Tread | Front | mm | 1000 |
Rear | mm | 970 | |
Min. ground clearance | mm | 135 | |
Engine | Model | Chinese GQ-4Y Gasoline engine | |
Rated output | kw/rpm | 34/2500 | |
Rated torque | N.m/rpm | 142/1800 | |
No. of cylinder | 4 | ||
Displacement | L | 2.237 | |
Fuel tank capacity | L | 60 |
![]() |
